Technical datasheet

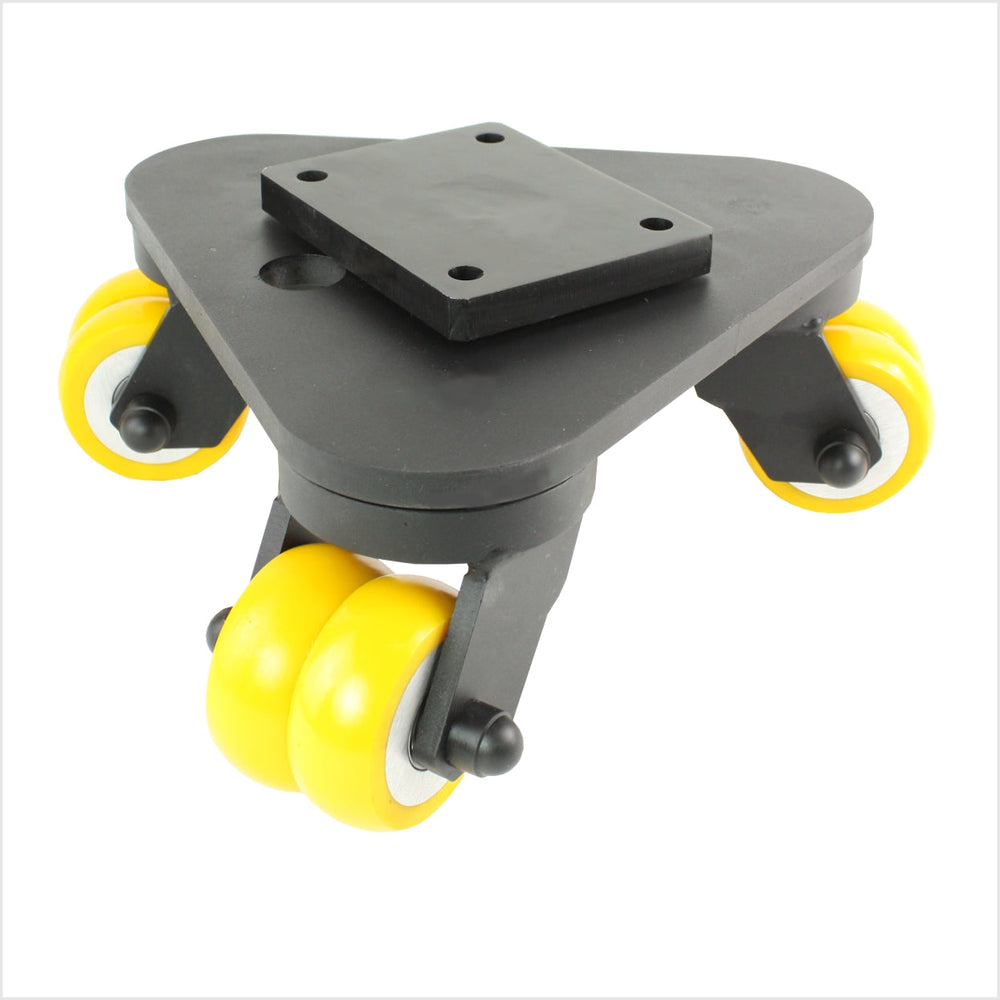

100 mm Heavy-duty turntable bearing, 3 PU swivel castors, crowned - DRT-MG/690KBA/100/50
Item number: DRT-MG/690KBA/100/50
Description
The 100-mm-Schwerlast-Drehteller is a heavy turntable bearing welded from steel for high loads and a in-house development by castors-direct.com. The special feature: the swivel bearings of the castor housings are integrated directly into the triangular plate – this gives the turntable bearing an extremely low overall height, which is otherwise hardly available.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 50 mm |
| Turning radius | 192 |
| Load capacity | 1500 kg |
| Overall height | 165 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Safety instructions – turntable swivel castors for stage, scenery and grandstand technology Intended use These castors are intended exclusively for the transport and positioning of stage structures, scenery and grandstand elements. Use under person load is not permitted – grandstands, platforms and stage elements m...
