Technisches Datenblatt

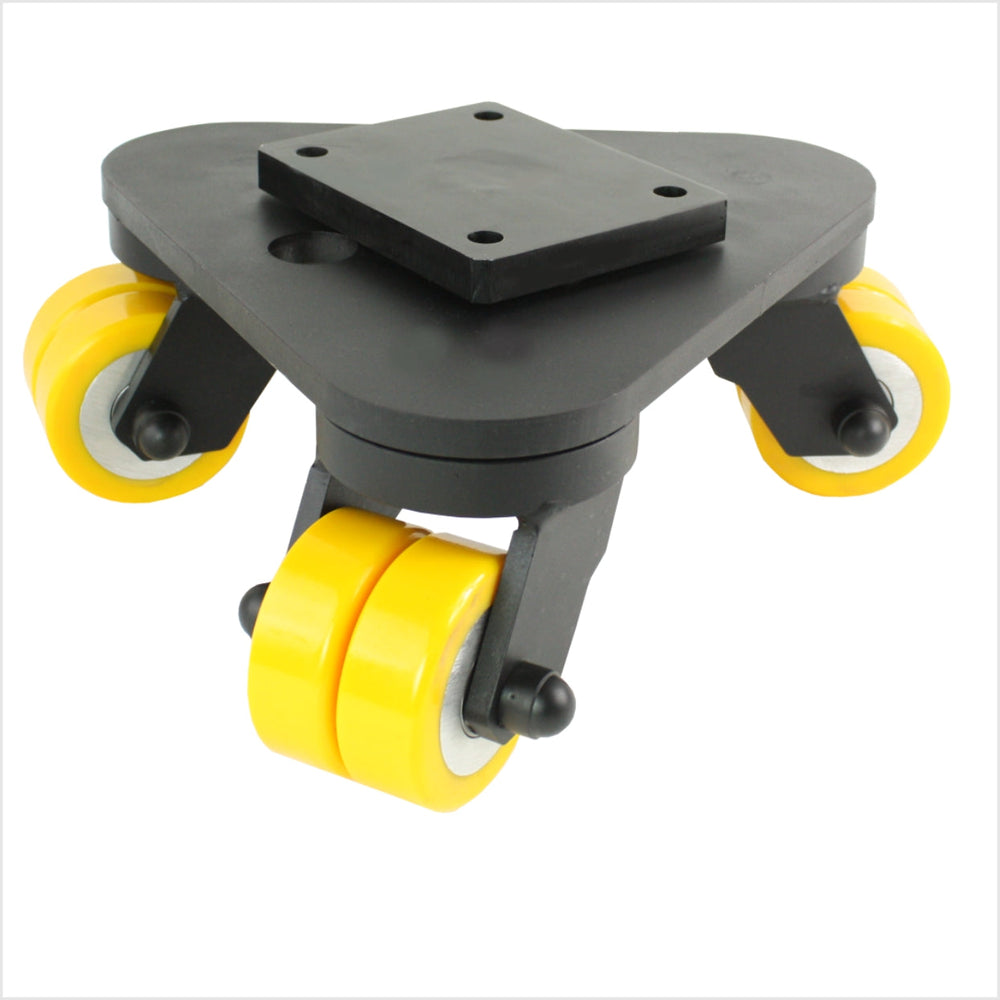

100 mm heavy-duty turntable, 3 PU swivel castors, flat - DRT-MG/690KFL/100/50
Artikelnummer: DRT-MG/690KFL/100/50
castors-direct.com
Beschreibung
Flat, heavy-duty turntable with three PU swivel castors for stable load handling and controlled movement. Ideal for custom technical applications.
Technische Daten
| Rad-Ø | 100 mm |
|---|---|
| Radbreite | 50 mm |
| Bauhöhe | 165 mm |
| Tragfähigkeit | 1500 kg |
| Plattenmaß | 140 x 110 |
| Lochbild | 105 x 80 |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 192 |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 165 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 100 mm |
| Tragkraft | 1500.0 kg |
| Material | Polyurethan MDI PU |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 1500 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Safety Instructions – Swivel Castors for Stage, Scenery, and Grandstand Technology Intended Use These castors are exclusively intended for the transport and positioning of stage structures, scenery, and grandstand elements. Use under live load is not permitted – grandstands, platforms, and stage elements must not b...
