Technical datasheet

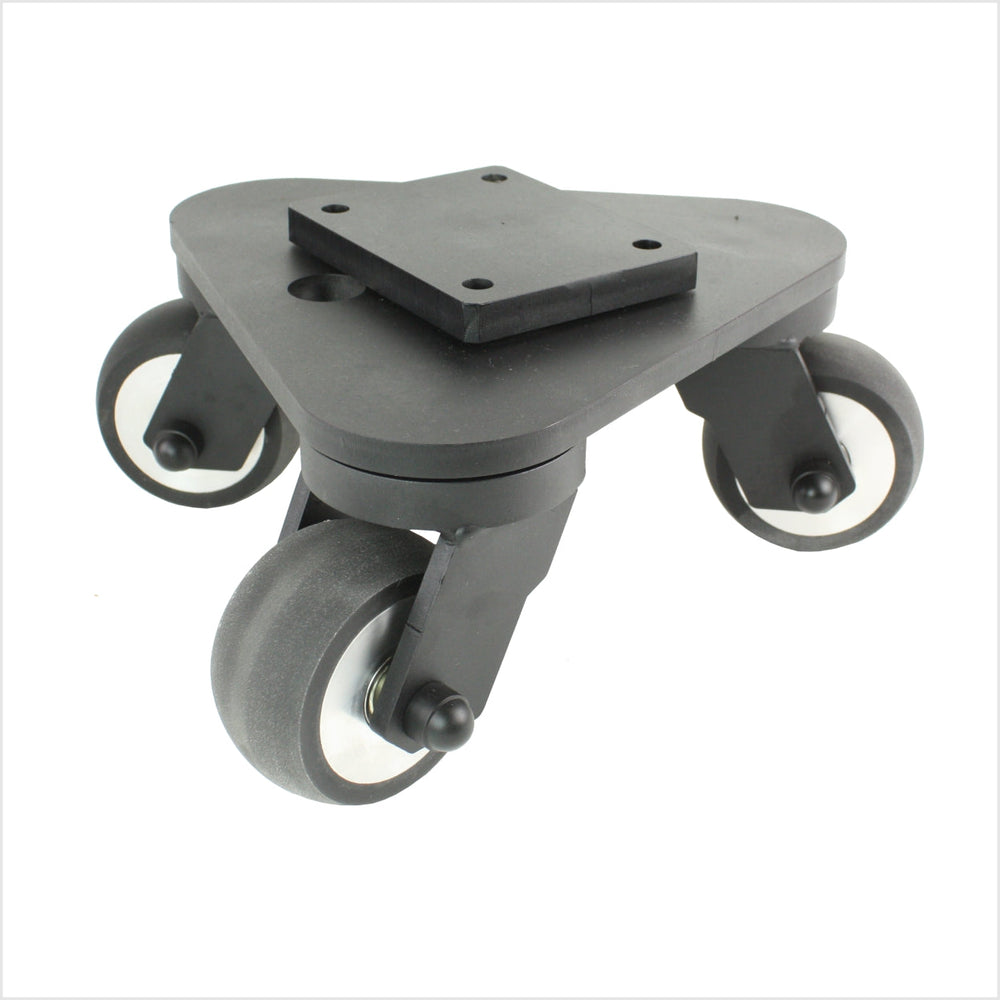

Mega heavy-duty turntable bearing 100 mm | black | 3 PU twin wheels | crowned | low overall height 165 mm | max. 1400 kg load capacity
Item number: DRT-MG/691KBA/100/30
castors-direct.com
Description
The 100-mm-Schwerlast-Drehteller is a heavy turntable bearing welded from steel for high loads and a proprietary development by castors-direct.com. What makes it special: the swivel bearings of the castor housings are inserted directly into the triangular plate – this gives the turntable bearing an extremely low overall height, which is hardly available otherwise.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 60 mm |
| Turning radius | 192 |
| Load capacity | 1400 kg |
| Overall height | 165 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
