Technical datasheet

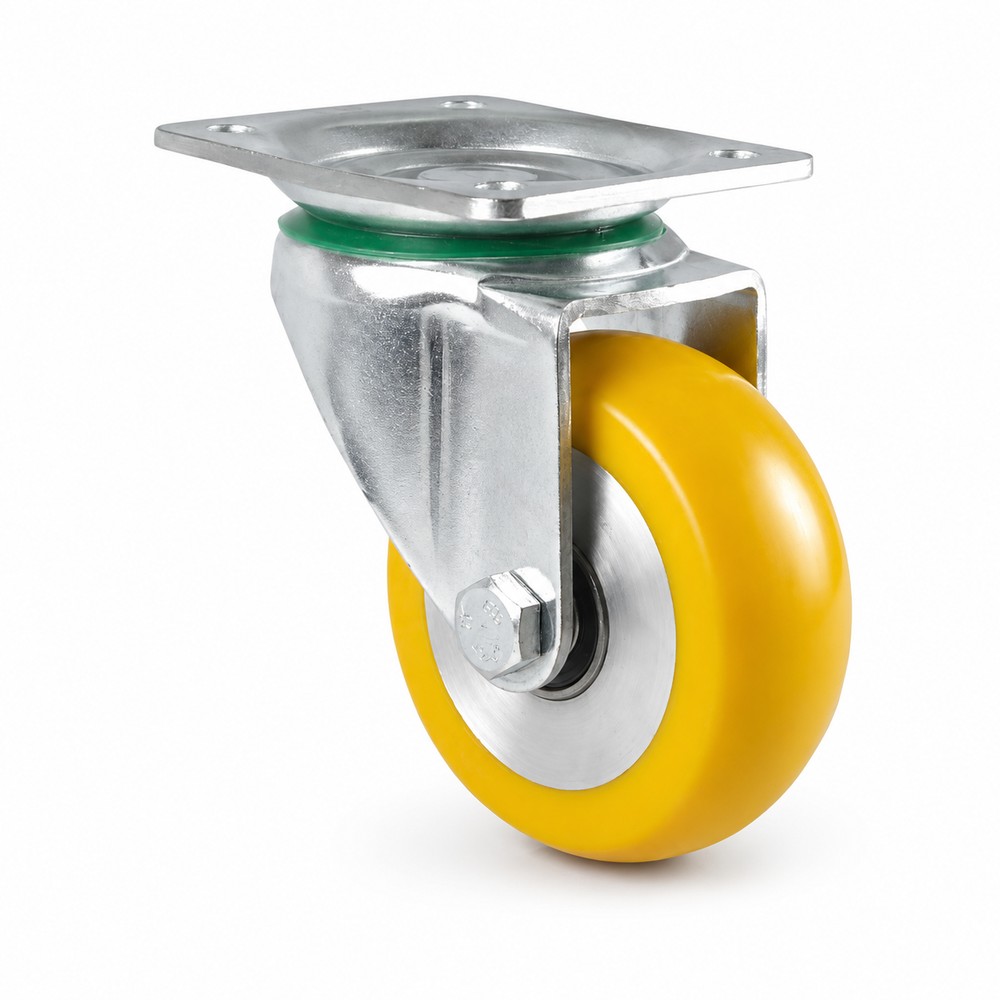

100 mm Swivel castor, polyurethane wheel, crowned & flat - L-TS/690KBA/100/40
Item number: L-TS/690KBA/100/40
Variant: crowned
castors-direct.com
Description
The 100 mm swivel castor is designed for heavier loads and smooth running. The crowned PU wheel reduces rolling resistance and vibrations in mobile applications. Equipped with ball bearings , a robust aluminum rim and a galvanized sheet steel housing for industrial use.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Load capacity | 320 kg |
| Overall height | 125 mm |
| Ausladung | 40mm |
| Schraubloch-Ø | 9 mm |
| Lochbild | 80 x 60 mm |
| Plattenmaß | 105 x 80 mm |
| Fastening | Plate |
| Gewicht | 1.4 kg |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
