Technisches Datenblatt

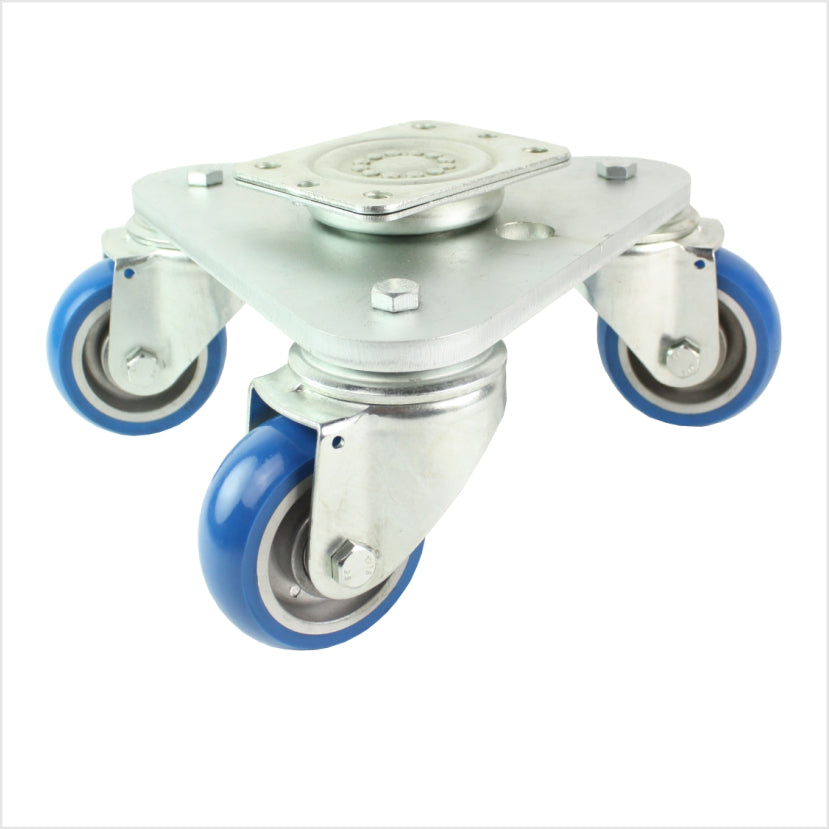

100 mm turntable with 3 soft PU swivel castors, crowned - DRT-TS/108KBA/100/40
Artikelnummer: DRT-TS/108KBA/100/40
castors-direct.com
Beschreibung
100 mm Turntable with 3 Soft PU Swivel Castors, Crowned Wheel-Ø: 100 mm, crowned tread 3 soft polyurethane swivel castors for quiet running Turntable design for even load distribution Wheel bearing: Ball bearing Robust pressed steel housing Suitable for frequent movements & medium loads
Technische Daten
| Rad-Ø | 100 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 163 mm |
| Tragfähigkeit | 800 kg |
| Plattenmaß | 140 x 110 mm |
| Lochbild | 105 x 80 mm |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 219.0mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Anschraubloch | 11.0 mm |
| Bauhohe | 163 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 100 mm |
| Tragkraft | 800.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 75° Shore A. |
| Farbe | Blau |
| Tragfähigkeitsklasse | up to 800 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Safety Instructions – Swivel Plate Castors for Stage, Scenery, and Grandstand Technology Intended Use These castors are exclusively intended for the transport and positioning of stage structures, scenery, and grandstand elements. Use with human load is not permitted – grandstands, platforms, and stage elements must...
