Technical datasheet

V-groove 90° / 18 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 100 mm, ball bearing

Item number: DSPV-9743K/100/24/18

Description

This V-groove 90° / 18 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 100 mm, ball bearing is designed for use on suitable angle rails, angle profiles and industrial rail guides. The 90° V-groove supports smooth guidance of the roller on suitable angle profiles.

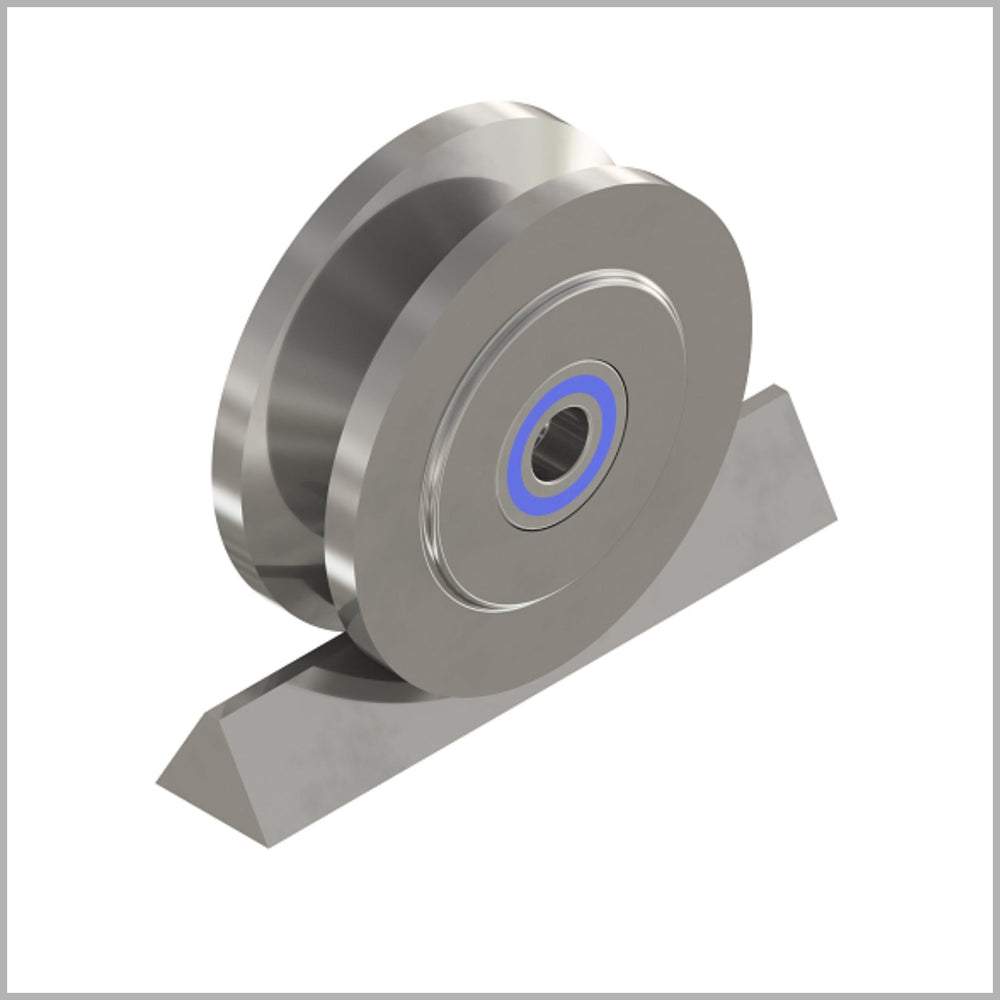

V-groove 90° / 18 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 100 mm, ball bearing – DSPV-9743K/100/24/18

Technical data

Wheel diameter (D) 100 mm
Wheel width (B) 24 mm
Load capacity 300 kg
Groove width (E) 18mm
Bore (d1) 15 mm
Hub length (C) 24 mm
Conductivity Conductive
Groove depth 9 mm
Temperature -20 °C to +100 °C
Tread hardness 200 230 HB
Material AISI 304

Manufacturer

rollen-direkt - Heidestr. 38 a - 59174 Kamen - Phone 02307 - 9645250
