Technisches Datenblatt

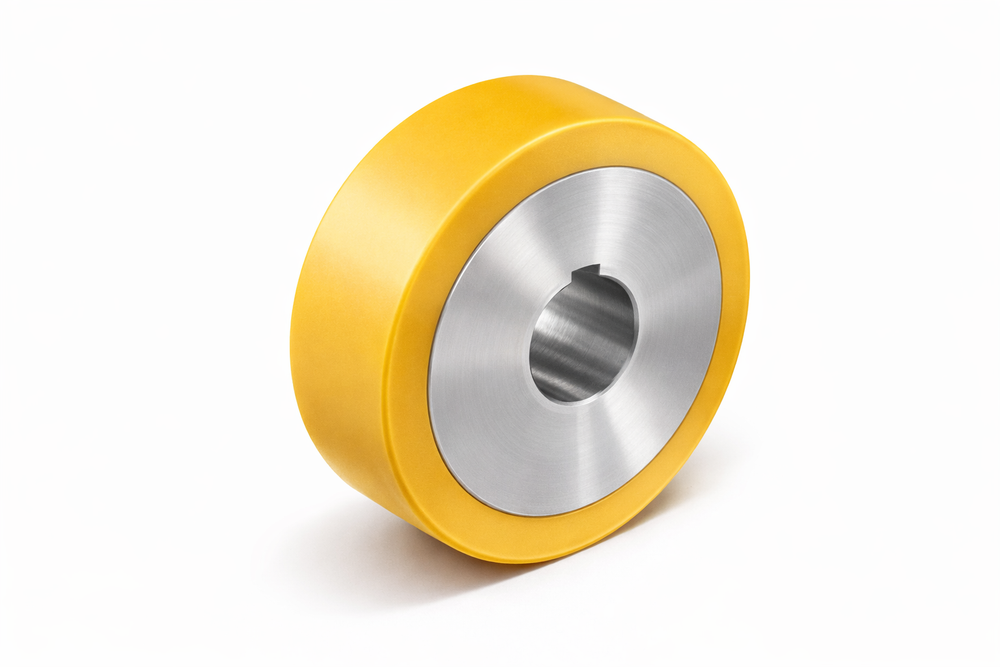

100 x 40 mm drive wheel Bo:15 mm with polyurethane tread, aluminum rim
Artikelnummer: 6901-ATR/100/40/44/15
castors-direct.com
Beschreibung
Drive wheel with a 100 mm diameter and 40 mm width for industrial use. The polyurethane tread is abrasion-resistant, floor-friendly, and ensures smooth running. The aluminum rim offers high stability and a long service life. Suitable for conveyor technology and driven systems.
Technische Daten
| Rad-Ø | 100 mm |
|---|---|
| Radbreite | 40 mm |
| Achsloch-Ø | 15 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 44 mm |
| Nabennutbreite (N1) | 2.3 mm |
| Nabennuthöhe (N2) | 5mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 300 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 15.0mm |
| Nabenlaenge | 44.0 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 100 mm |
| Tragkraft | 300.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Gewicht | 300 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is designed for use in industrial machinery, conveyor systems, automated guided vehicles (AGVs), material handling equipment, or similar technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly m...
