Technical datasheet

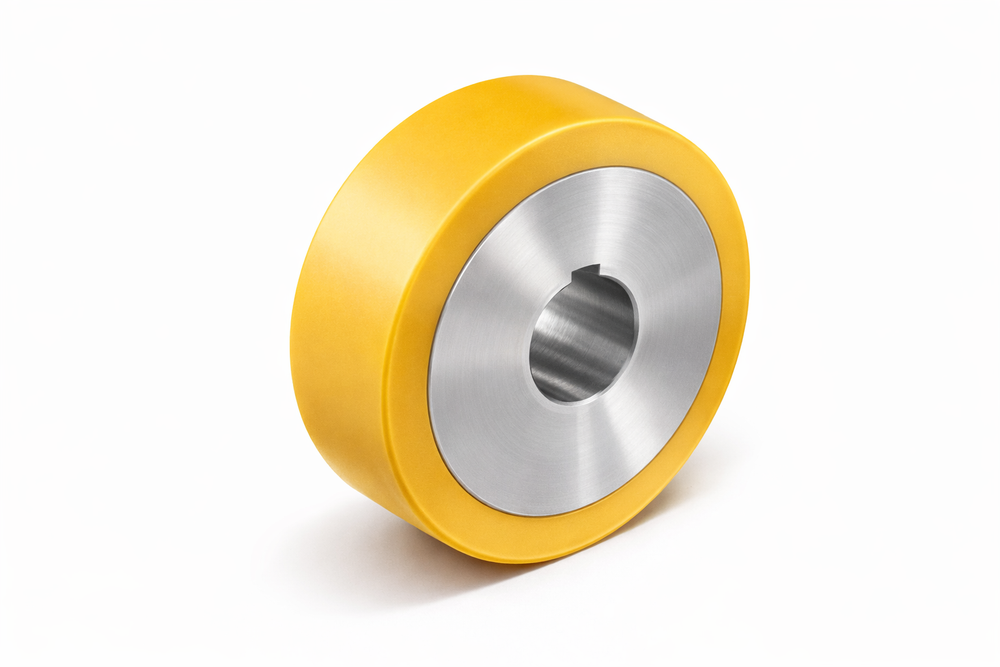

100 x 40 mm Drive wheel bore:20 mm with polyurethane tread, aluminium rim
Item number: 6901-ATR/100/40/40/20
castors-direct.com
Description
Robust drive wheel with polyurethane tread and aluminium rim for reliable power transmission. Wear-resistant, low-noise and ideal for industrial drives and conveyor systems.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Load capacity | 300 kg |
| Bore (d1) | 20 mm |
| Hub length (C) | 40 mm |
| Hub groove width (N1) | 2.8 mm |
| Hub groove height (N2) | 6 mm |
| Hub keyway fit | JS9 |
| Axle bore fit | H7 |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Weight | 300 g |
| Material | Polyurethane (PU), Aluminium |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Product safety – drive wheels Intended use This drive wheel is intended for use in industrial machines, conveyor systems, driverless transport systems (FTS/AGV), industrial trucks or similar technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may onl...
