Technical datasheet

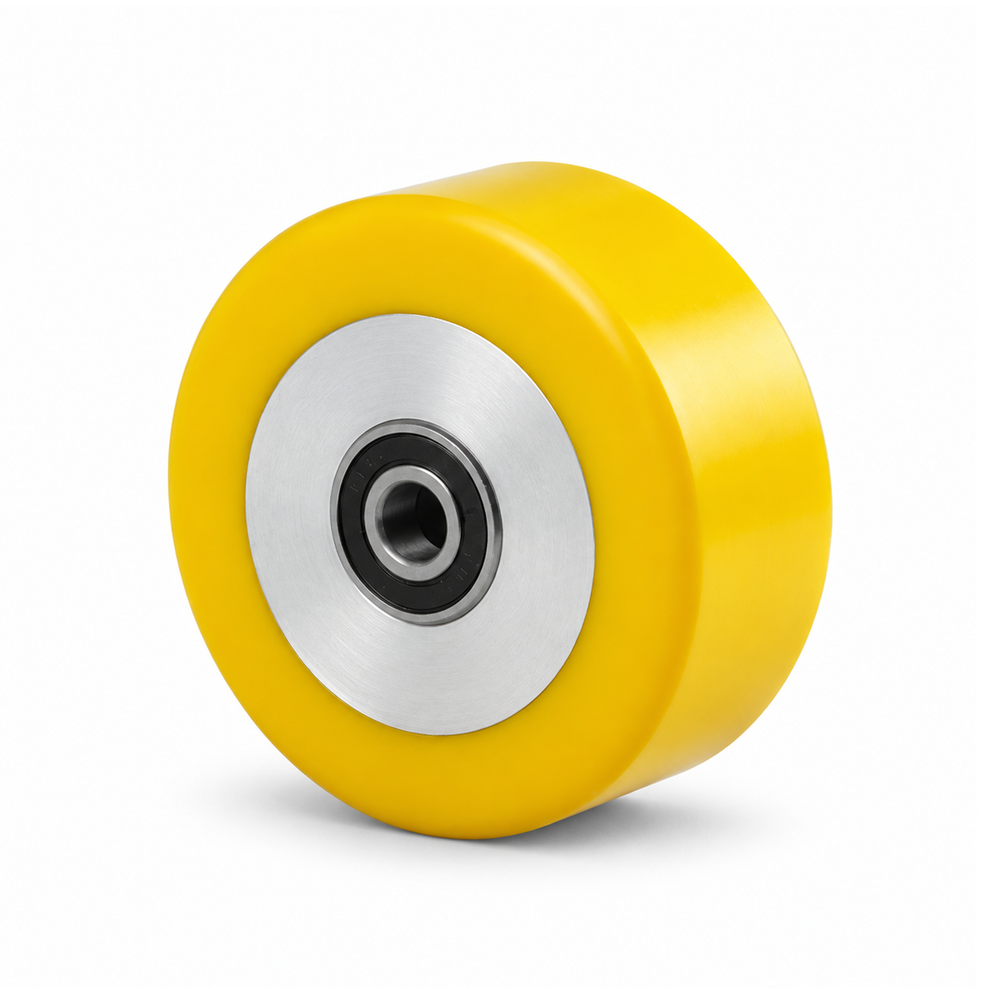

100 × 40 mm Polyurethane wheel with solid aluminium core – 380 kg, hub 50 mm (ZV), ball bearing
Item number: 690KFL/100/40/50/12
Variant: flat
castors-direct.com
Description
The polyurethane wheel 100 × 40 mm with 50-mm-Nabe is the reinforced version with ball bearing with extended inner ring (ZV) and a load capacity of 380 kg per wheel. The longer hub distributes the load over a larger axle contact surface and reduces play – ideal for demanding heavy-duty applications.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Hub length (C) | 50 mm |
| Bore (d1) | 12 mm |
| Load capacity | 380 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
