Technical datasheet

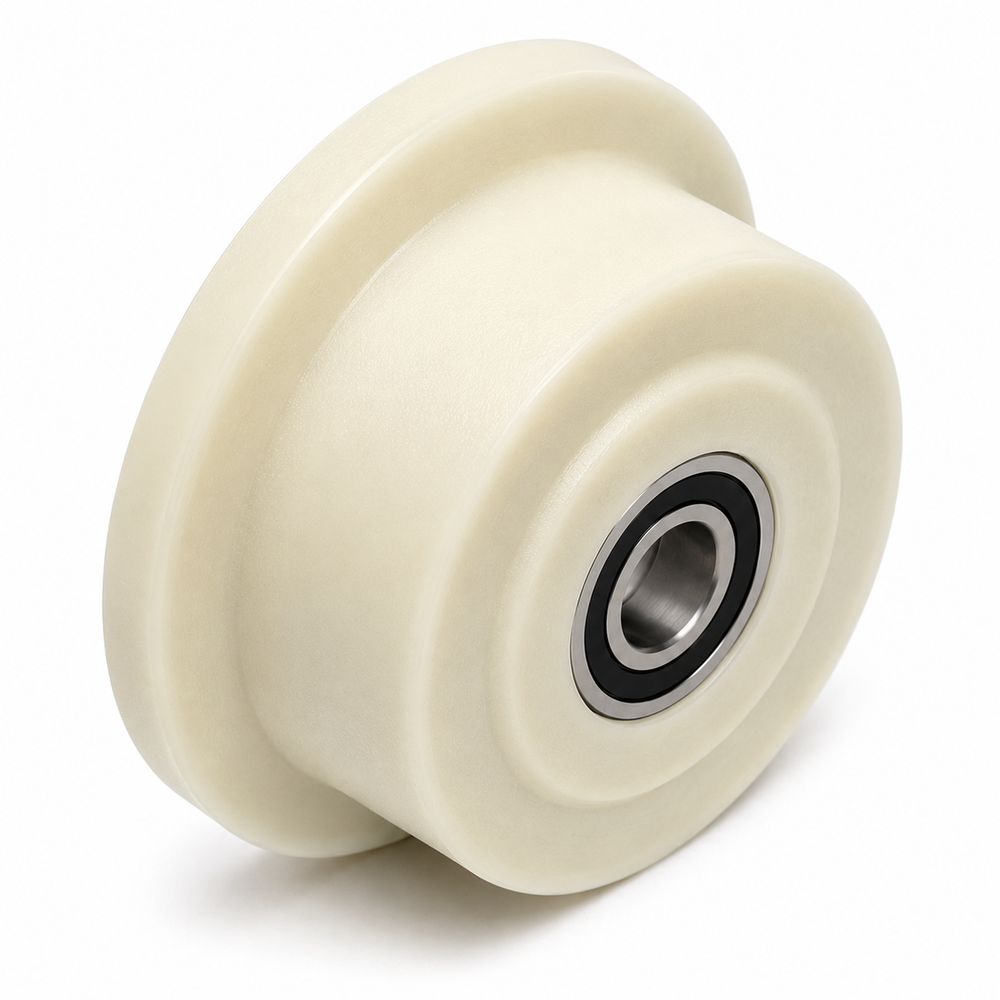

Flanged Wheel | 100 x 55 mm | Polyamide 6G | Tread 3°
Item number: SPR-2505K/100/125/55/60
castors-direct.com
Description
100 x 55 mm flanged wheel made of polyamide made of cast polyamide 6 with 2 ball bearings 2RS in the wheel Running surface rising 3° to the axis The material is tough and high-strength. low weight compared to steel wheels with similar load-bearing capacity
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Spurkranz-Ø (D2) | 125 mm |
| Wheel width (B) | 55 mm |
| Laufbreite (T) | 45 mm |
| Load capacity | 800 kg |
| Axle hole (d1) | 20 mm |
| Hub length (C) | 60 mm |
| Spurkranzlage (E) | 10 |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +80 °C |
| Material | Polyamid 6G |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Exclusively for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the wheel firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear, and damage. Replace damaged wheels immediately.
