Technical datasheet

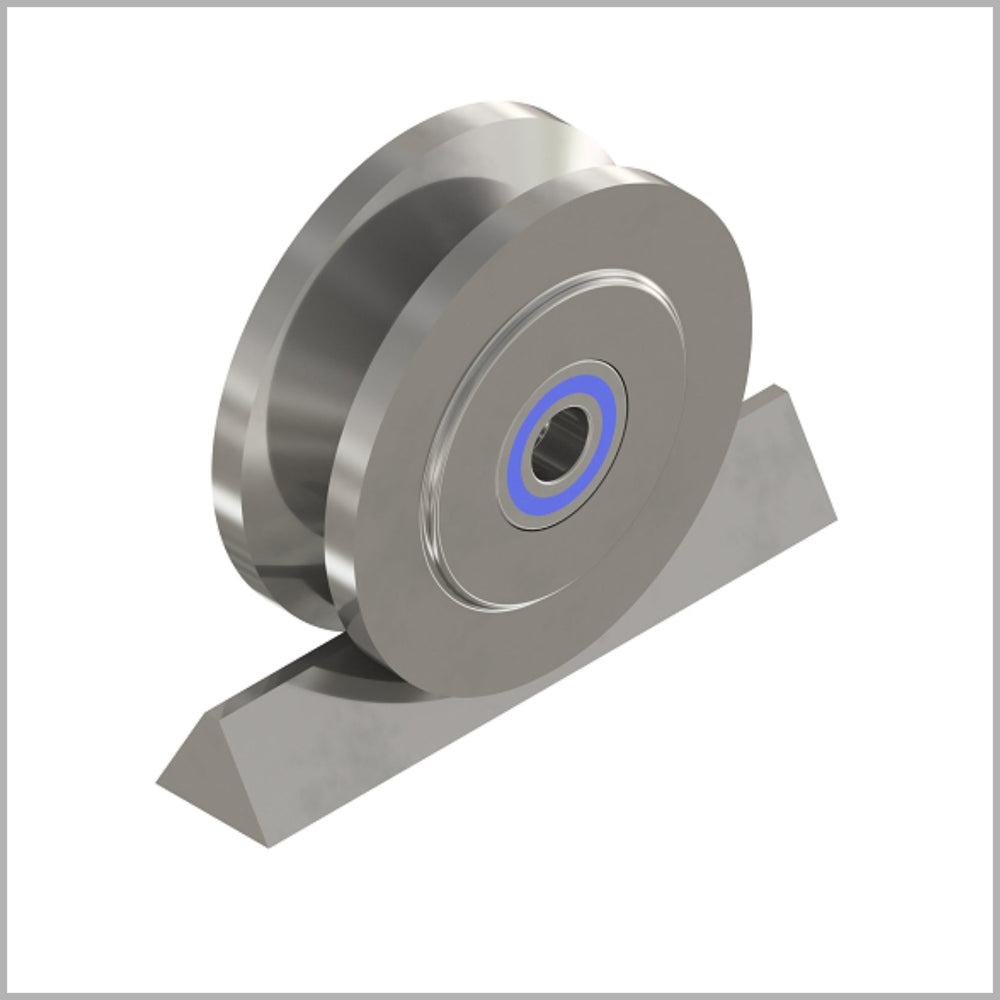

V-groove 90° / 25 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 120 mm, ball bearing

Item number: DSPV-9743K/120/33/35

Description

This V-groove 90° / 25 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 120 mm, ball bearing is designed for use on suitable angle rails, angle profiles and industrial rail guides. The 90° V-groove supports smooth running of the roller on suitable angle profiles.

V-groove 90° / 25 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 120 mm, ball bearing – DSPV-9743K/120/33/35

Technical data

Wheel diameter (D) 120 mm
Wheel width (B) 33 mm
Load capacity 600 kg
Groove width (E) 25mm
Bore (d1) 20 mm
Hub length (C) 33 mm
Conductivity Conductive
Groove depth 12.5 mm
Temperature -20 °C to +100 °C
Tread hardness 200 230 HB
Material AISI 304, Stainless steel 1.4301

Manufacturer

rollen-direkt - Heidestr. 38a - 59174 Kamen - Tel. +49 2307 9645248
