Technical datasheet

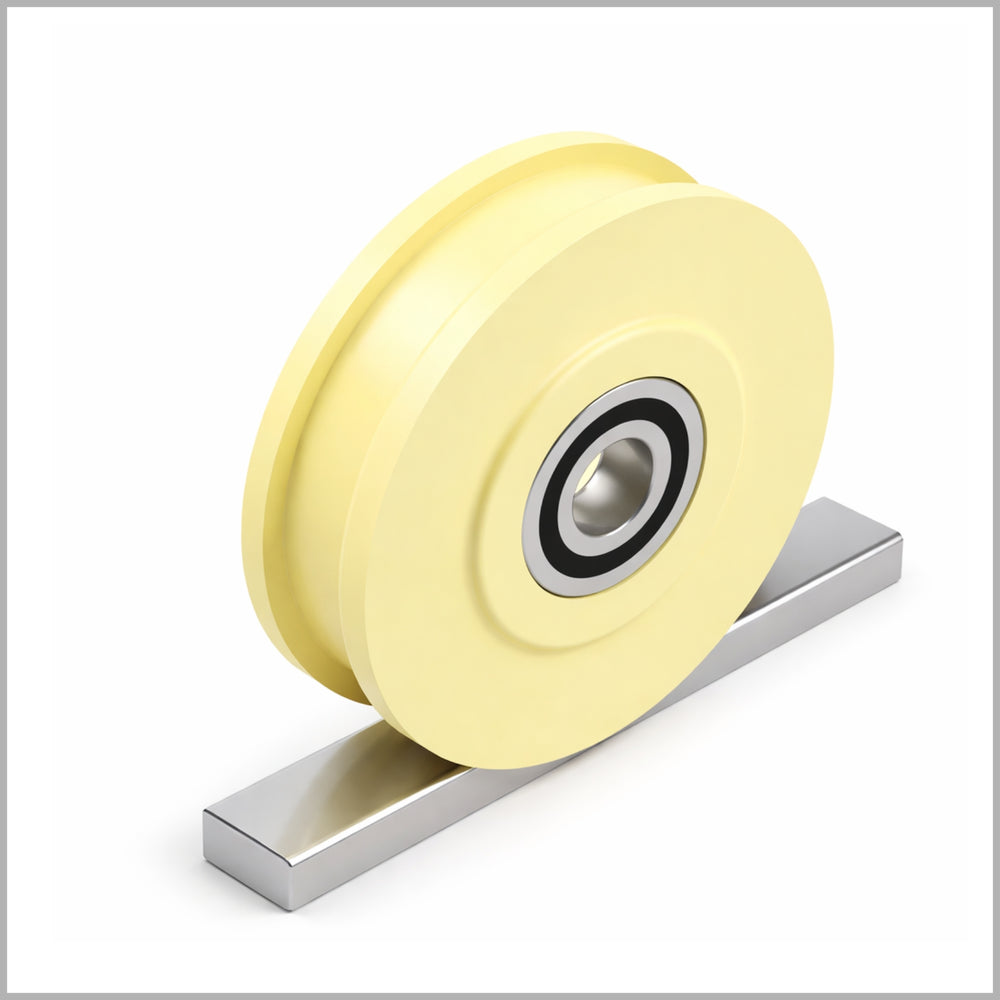

125 mm Double-flanged wheel, polyamide PA6G, ball bearing - DSPR-2505K/125/40/20/20
Item number: DSPR-2505K/125/40/20/20
castors-direct.com
Description
This larger double-flanged wheel is suitable as a gate wheel, for trolleys, sliding constructions and heavy-duty pool decks. The flanges on both sides ensure stable guidance on suitable rails and support smooth movement at higher loads. Polyamide PA6G is robust, corrosion-free and significantly lighter than steel. The wheel is suitable for outdoor and industrial areas where durable and low-maintenance rail guidance is required.
Technical data
| Wheel diameter (D) | 125 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Flanged wheel diameter (D2) | 150 mm |
| Bore (d1) | 20 mm |
| Hub length (C) | 40 mm |
| Load capacity | 780 kg |
| Tread width (T) | 20 mm |
| Non-marking | Yes |
| Material | Polyamide 6G |
| Temperature | -20 °C to +80 °C |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Phone 02307 - 9645076
