Technisches Datenblatt

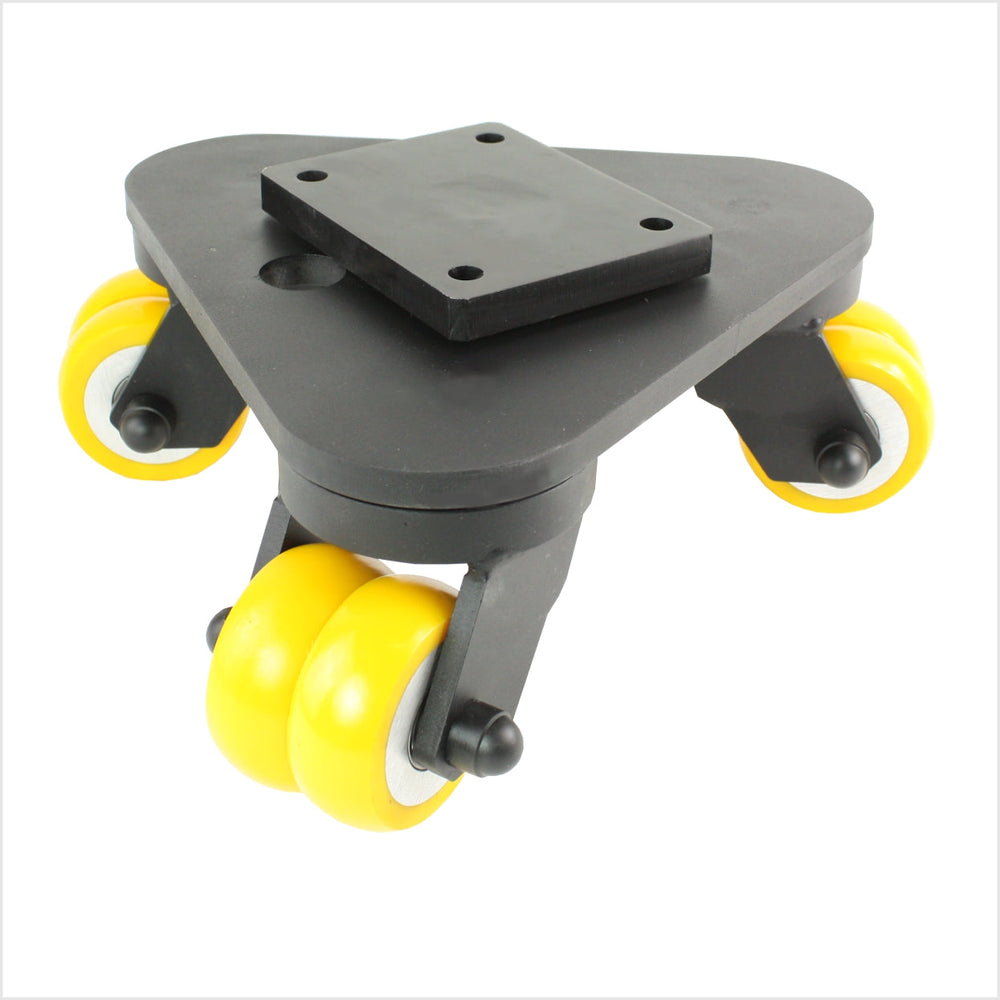

125 mm heavy-duty turntable, 3 PU swivel castors, crowned - DRT-MG/690KBA/125/45
Artikelnummer: DRT-MG/690KBA/125/45
castors-direct.com
Beschreibung
Robust heavy-duty turntable with three crowned PU swivel castors and a diameter of 125 mm. Suitable for heavy loads and precise movements in industrial applications.
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 45 mm |
| Bauhöhe | 190 mm |
| Tragfähigkeit | 1800 kg |
| Plattenmaß | 140 x 110 |
| Lochbild | 105 x 80 |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 247 |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 190 mm |
| Radbreite | 45.0 mm |
| Rad durchmesser | 125 mm |
| Tragkraft | 1800.0 kg |
| Material | Polyurethan MDI PU |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 2500 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Safety Instructions – Swivel Castors for Stage, Scenery, and Grandstand Technology Intended Use These castors are exclusively intended for the transport and positioning of stage structures, scenery, and grandstand elements. Use with persons on board is not permitted – grandstands, platforms, and stage elements must...
