Technisches Datenblatt

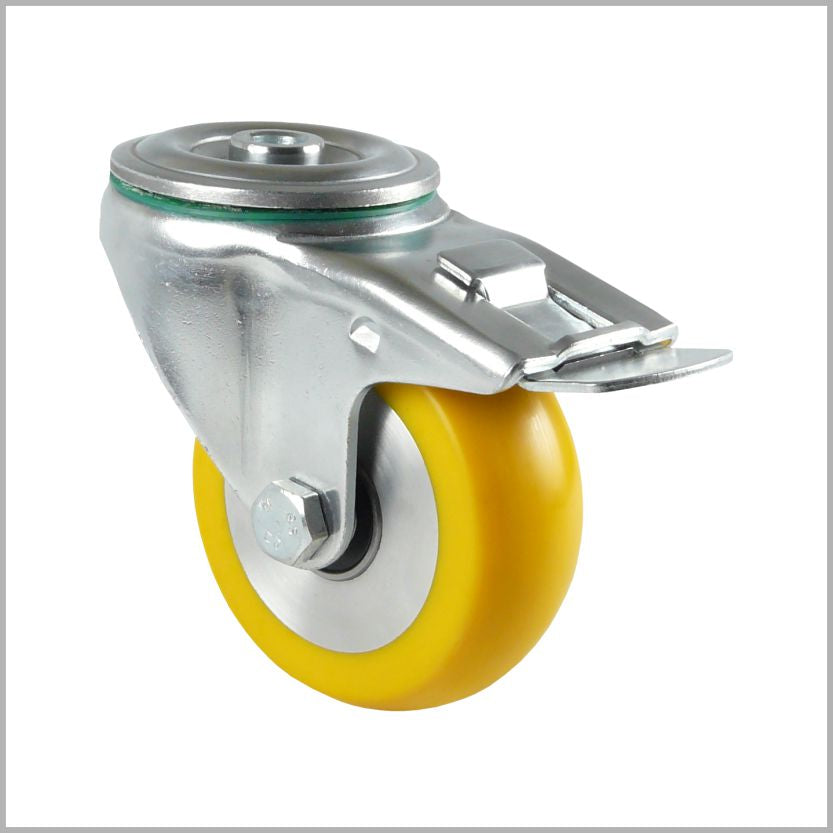

125 mm swivel castor, back hole and brake, polyurethane wheel, crowned & flat - RTB-TS/690KBA/125/40
Artikelnummer: RTB-TS/690KBA/125/40
Ausführung: spherical
castors-direct.com
Beschreibung
The 125 mm swivel castor with back hole and brake is designed for heavy loads and offers maximum stability when stationary. High-quality materials & workmanship Robust PU wheel with ball bearing , aluminum rim and galvanized steel sheet housing .
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 155 mm |
| Tragfähigkeit | 350 kg |
| Plattenmaß | 75mm |
| Schraubloch-Ø | 13 mm |
| Ausladung / Drehradius | 40mm |
| Befestigung | bolt hole |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 13.0 mm |
| Bauhohe | 155 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 125 mm |
| Tragkraft | 350.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 500 kg |
| Gewicht | 1.6 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
