Technisches Datenblatt

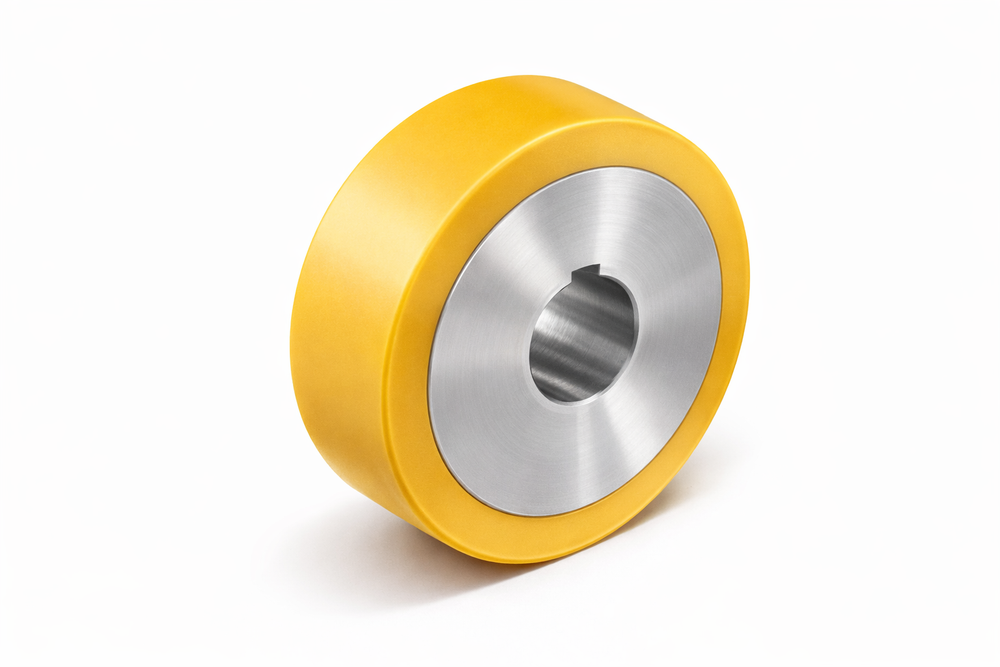

125 x 40 mm drive wheel Bo:30 mm with polyurethane tread, aluminum rim
Artikelnummer: 6901-ATR/125/40/50/30
castors-direct.com
Beschreibung
Drive wheel with a 125 mm diameter for smoother running and improved traction. The polyurethane tread is wear-resistant and gentle on floors. The aluminum rim ensures high stability at a low weight.
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 40 mm |
| Achsloch-Ø | 30 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 50 mm |
| Nabennutbreite (N1) | 3.3 mm |
| Nabennuthöhe (N2) | 8mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 400 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 30.0mm |
| Nabenlaenge | 50.0 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 125 mm |
| Tragkraft | 400.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Gewicht | 450 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is designed for use in industrial machinery, conveying systems, automated guided vehicles (AGV), industrial trucks, or comparable technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may only...
