Technical datasheet

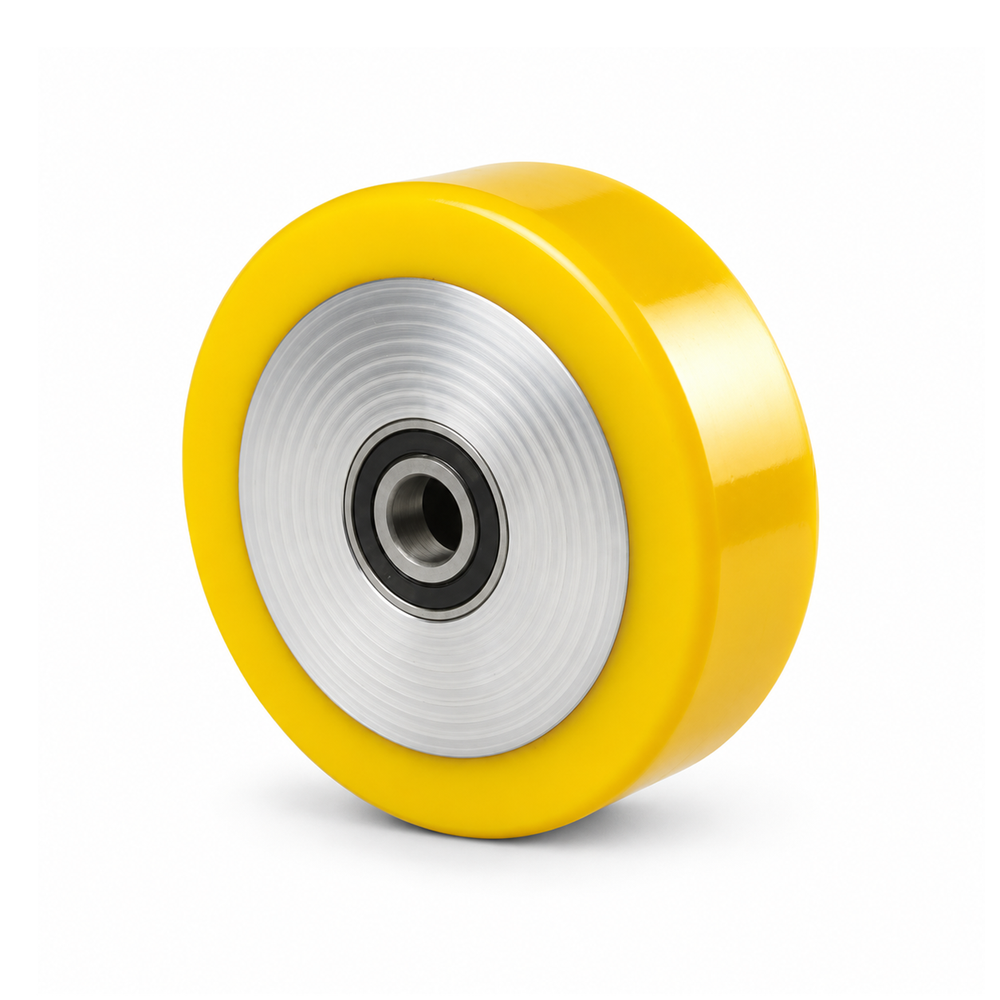

125 × 45 mm Heavy-duty polyurethane wheel with solid aluminium core – 550 kg, ball bearing, flat & crowned
Item number: 690KFL/125/45/45/20
Variant: 45 mm / flat
castors-direct.com
Description
The heavy-duty polyurethane wheel 125 × 45 mm carries 550 kg per wheel – the wider 45-mm-Lauffläche distributes the load more evenly and reduces pressure on the floor. The solid aluminium core and deep-groove ball bearing ensure smooth running at high load capacity.
Technical data
| Wheel diameter (D) | 125 mm |
|---|---|
| Wheel width (B) | 45 mm |
| Hub length (C) | 45 mm |
| Bore (d1) | 20 mm |
| Load capacity | 550 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
