Technisches Datenblatt

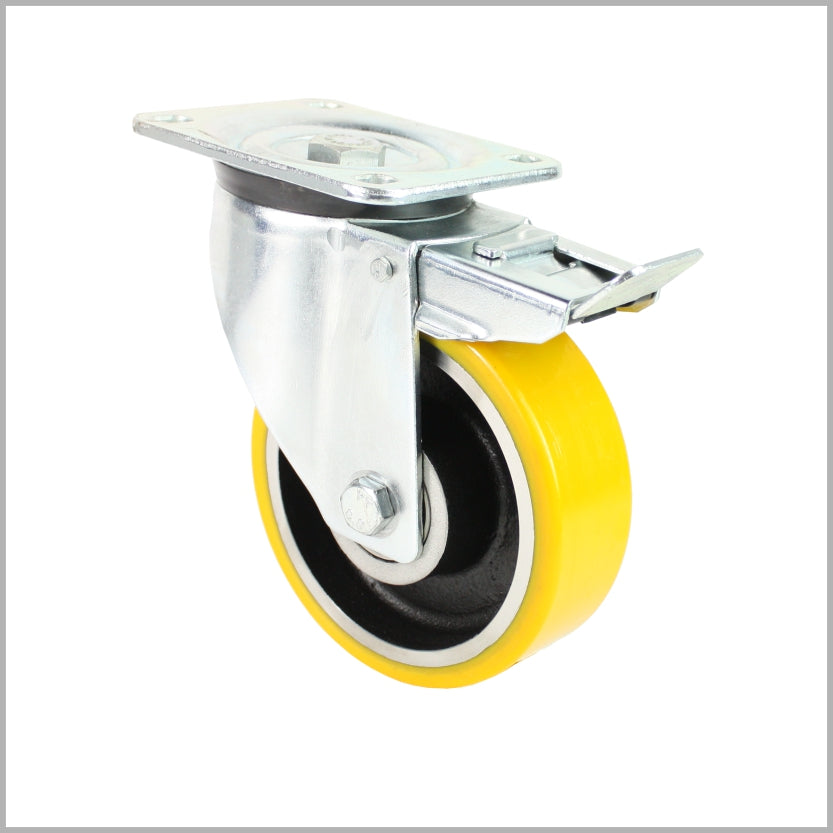

150 mm heavy-duty swivel castor with brake, PU wheel, steel rim, ball bearing - LTB-L/120K/150/50
Artikelnummer: LTB-L/120K/150/50
Beschreibung
150 mm heavy-duty swivel castor with brake for industrial use This heavy-duty castor offers added safety thanks to its locking mechanism. The PU wheel with cast steel rim is designed for heavy loads and continuous industrial use. Robust sheet steel housing with locking mechanism Polyurethane tread 92° Shore A Cast steel rim for high load capacity Ball bearings for smooth running Ideal for industrial t...
Technische Daten
| Rad-Ø | 150 mm |
|---|---|
| Radbreite | 50 mm |
| Bauhöhe | 200 mm |
| Tragfähigkeit | 750 kg |
| Plattenmaß | 140 x 110 mm |
| Lochbild | 105 x 80 mm |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 60.0mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 200 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 150 mm |
| Tragkraft | 750.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 1000 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Swivel Caster Do not exceed the maximum load capacity per caster – distribute total load evenly across all casters Only use on flat, clean surfaces – unevenness, rails, or gaps can cause jamming Never use swivel casters as the sole attachment – always combine with a sufficient number of rigid casters (Recommendatio...
