Technisches Datenblatt

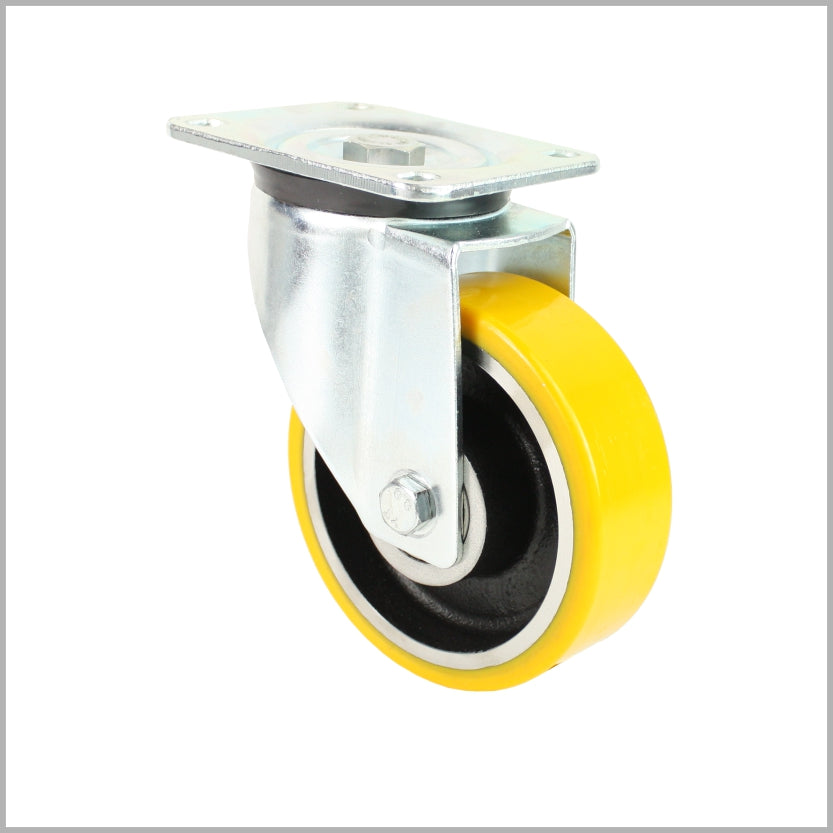

150 mm heavy-duty swivel castor, PU wheel, steel rim, ball bearing - LL/120K/150/50
Artikelnummer: L-L/120K/150/50
Beschreibung
150 mm heavy-duty swivel castor with PU wheel and cast steel rim Robust heavy-duty swivel castor for demanding industrial environments. The combination of a steel sheet housing and polyurethane tread ensures high load capacity and long service life. Solid steel sheet housing Polyurethane tread 92° Shore A Cast steel rim for extreme loads Ball bearings for reliable running properties Suitable for heav...
Technische Daten
| Rad-Ø | 150 mm |
|---|---|
| Radbreite | 50 mm |
| Bauhöhe | 200 mm |
| Tragfähigkeit | 750 kg |
| Plattenmaß | 140 x 110 mm |
| Lochbild | 105 x 80 mm |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 60.0mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 200 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 150 mm |
| Tragkraft | 750.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 1000 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Swivel Caster Do not exceed the maximum load capacity per caster – distribute total load evenly across all casters Only use on flat, clean surfaces – unevenness, rails, or gaps can cause jamming Never use swivel casters as the sole attachment – always combine with a sufficient number of rigid casters (Recommendatio...
