Technisches Datenblatt

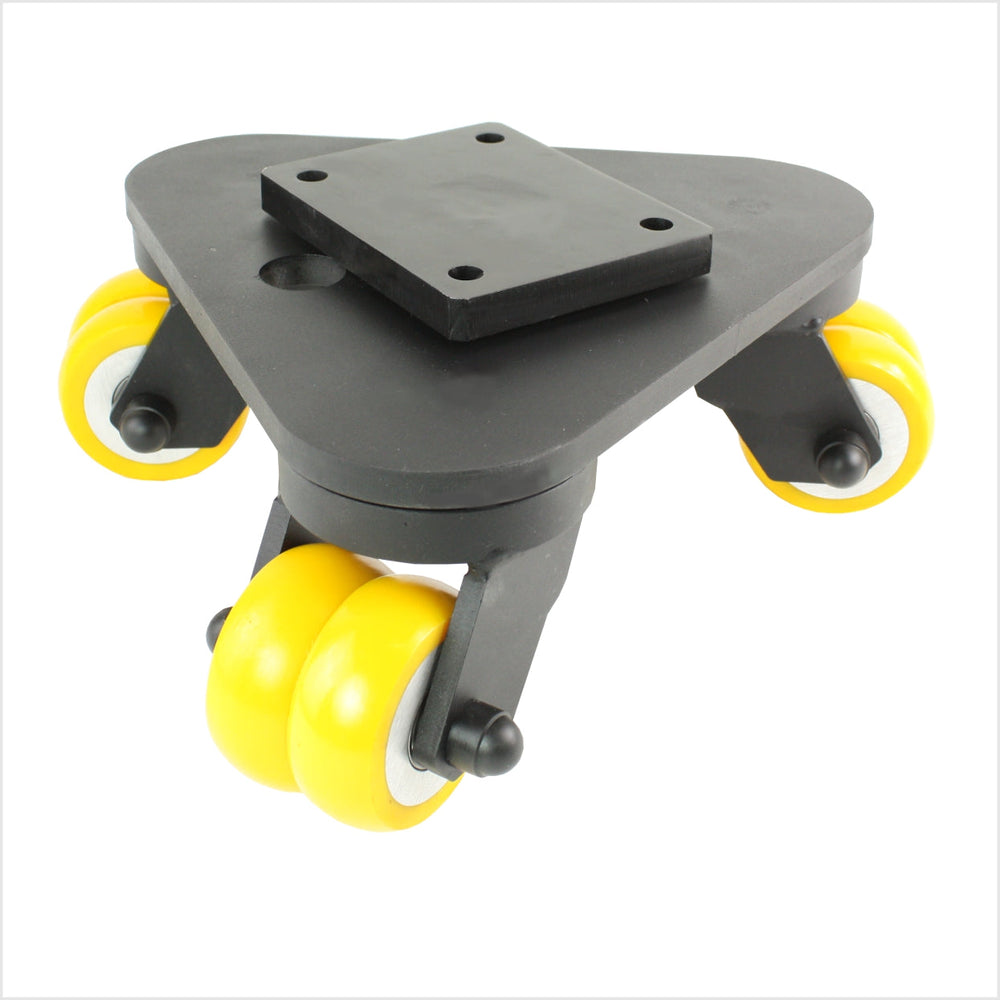

150 mm heavy-duty turntable, 3 PU swivel castors, crowned - DRT-MG/690KBA/150/50
Artikelnummer: DRT-MG/690KBA/150/50
castors-direct.com
Beschreibung
Heavy-duty turntable with 150 mm PU swivel castors for maximum load capacity and smooth running. The convex running surface facilitates changes of direction under load.
Technische Daten
| Rad-Ø | 150 mm |
|---|---|
| Radbreite | 50 mm |
| Bauhöhe | 230 mm |
| Tragfähigkeit | 2000 kg |
| Plattenmaß | 140 x 110 |
| Lochbild | 105 x 80 |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 260 |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 230 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 150 mm |
| Tragkraft | 2000.0 kg |
| Material | Polyurethan MDI PU |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 2500 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Safety Instructions – Swivel Plate Castors for Stage, Scenery, and Grandstand Technology Intended Use These castors are exclusively intended for the transport and positioning of stage structures, scenery, and grandstand elements. Use under human load is not permitted – grandstands, platforms, and stage elements mus...
