Technical datasheet

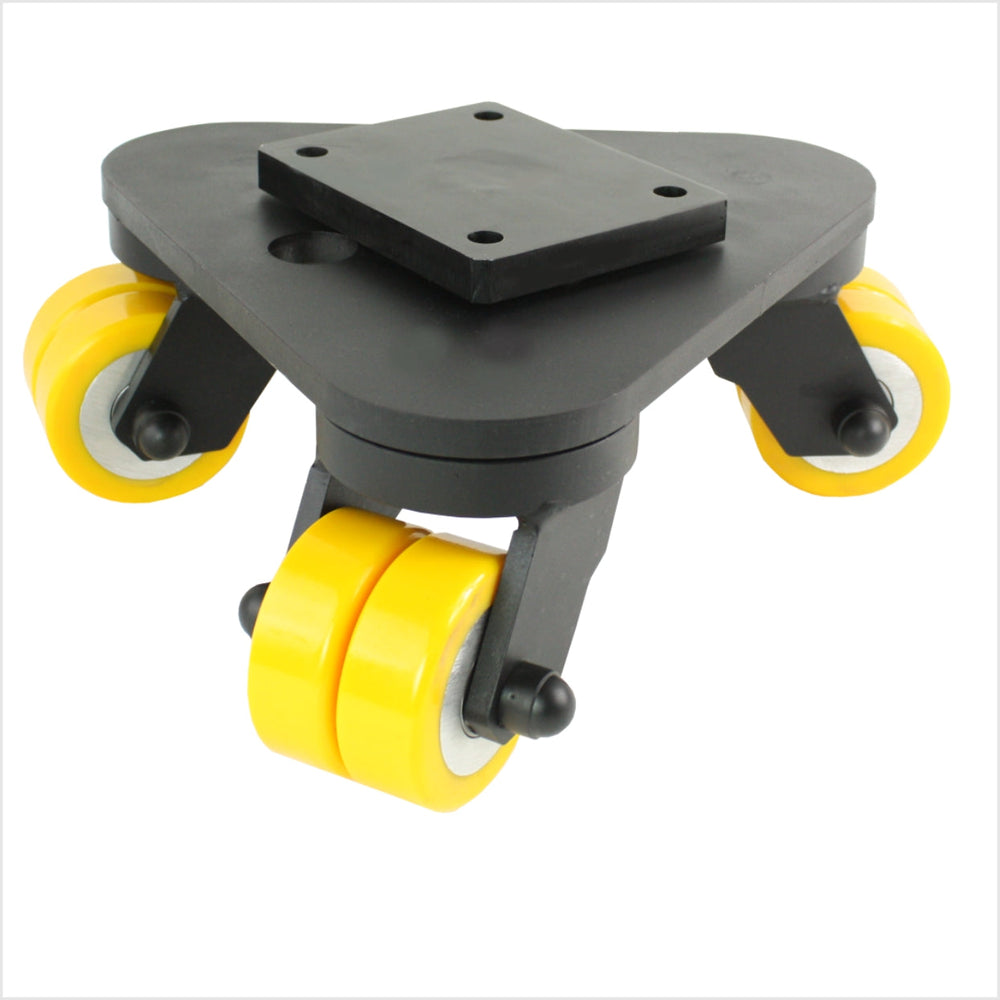

150 mm Heavy-duty turntable bearing, 3 polyurethane swivel castors, flat - DRT-MG/690KFL/150/50
Item number: DRT-MG/690KFL/150/50
Description
The 150-mm-Schwerlast-Drehteller is a heavy, welded steel turntable bearing for high loads and an in-house development by castors-direct.com. The special feature: the swivel bearings of the castor housings are built directly into the triangular plate – this gives the turntable bearing an extremely low overall height that is hardly available anywhere else.
Technical data
| Wheel diameter (D) | 150 mm |
|---|---|
| Wheel width (B) | 50 mm |
| Turning radius | 260 |
| Load capacity | 2000 kg |
| Overall height | 230 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Safety instructions – turntable swivel castors for stage, scenery and grandstand technology Intended use These castors are intended exclusively for the transport and positioning of stage structures, scenery and grandstand elements. Use under person load is not permitted – grandstands, platforms and stage elements m...
