Technical datasheet

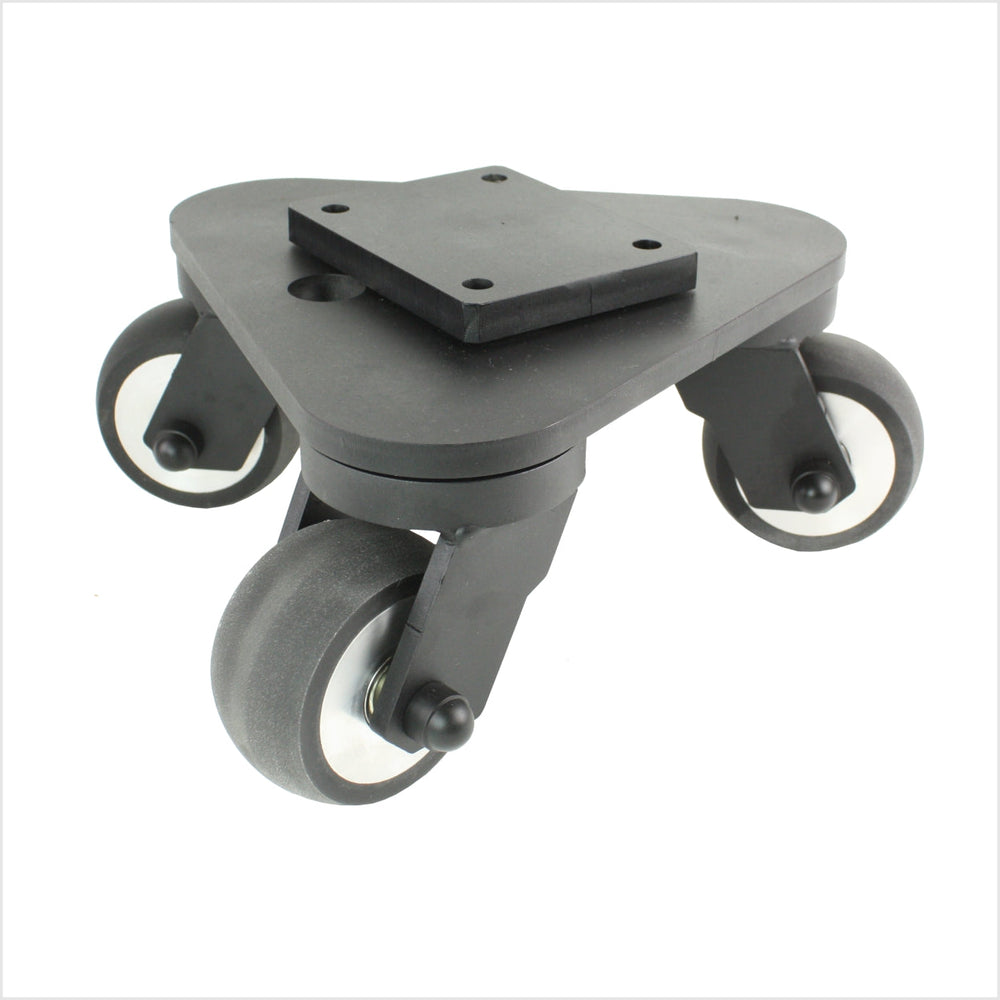

150 mm Heavy-duty turntable black, 3 PU rollers, crowned - DRT-MG/691KBA/150/50
Item number: DRT-MG/691KBA/150/50
castors-direct.com
Description
The 150-mm-Schwerlast-Drehteller is a heavy, welded steel turntable bearing for high loads and an in-house development by castors-direct.com. The special feature: the swivel bearings of the castor housings are built directly into the triangular plate – this gives the turntable bearing an extremely low overall height that is hardly available anywhere else.
Technical data
| Wheel diameter (D) | 150 mm |
|---|---|
| Wheel width (B) | 50 mm |
| Turning radius | 260 |
| Load capacity | 2000 kg |
| Overall height | 230 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
