Technical datasheet

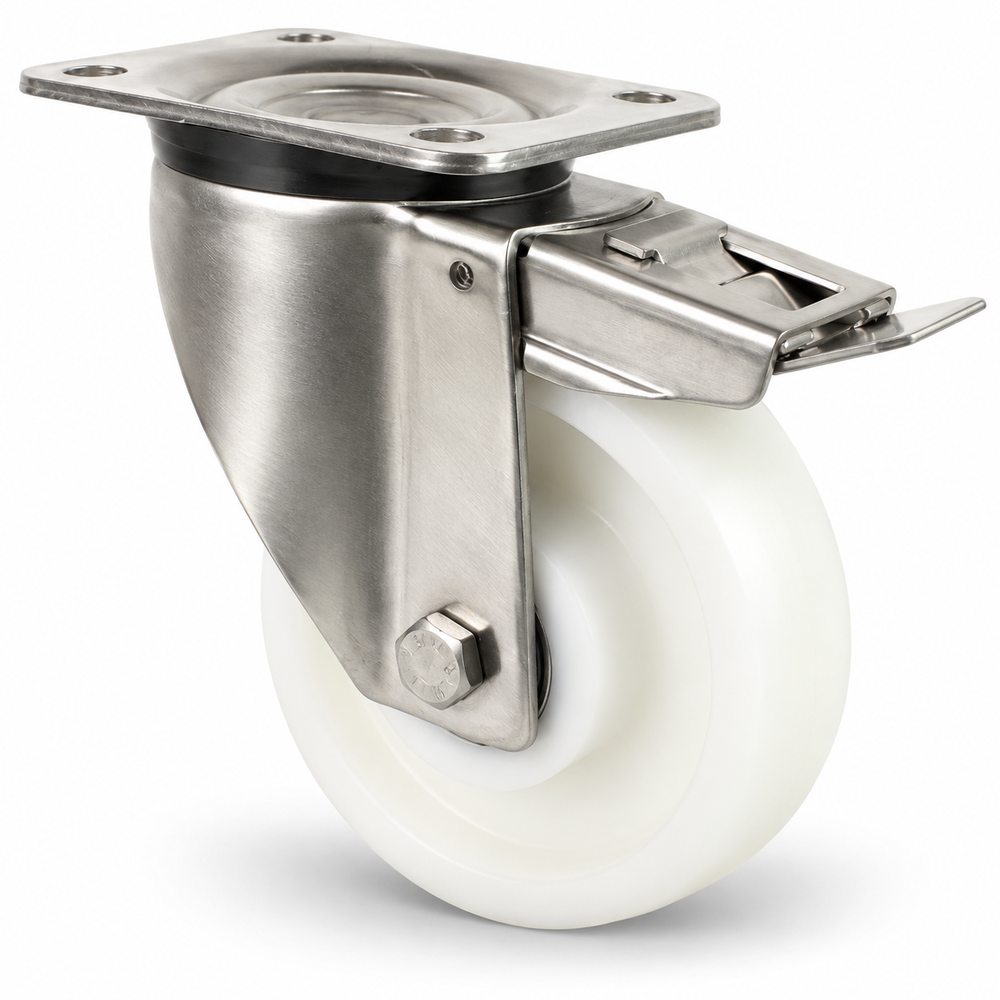

Stainless steel heavy-duty swivel castor with brake 150 mm | polyamide wheel | load capacity: 700 kg | overall height 195 mm
Item number: LTB-LN/200NK/150/45
castors-direct.com
Description
The housing is made of stainless steel and is therefore corrosion-resistant for hygiene and wet areas. The wheel is made of thermoplastic polyamide 6 natural, is robust, impact-resistant and highly wear-resistant; it runs on precision ball bearings for light, long-lasting operation. Load capacity: 700 kg.
Technical data
| Wheel diameter (D) | 150 mm |
|---|---|
| Wheel width (B) | 45 mm |
| Load capacity | 700 kg |
| Overall height | 195 mm |
| Offset | 55 mm |
| Hole Ø | 11 mm |
| Bolt hole spacing | 105 x 80 mm |
| Plate size | 140 x 110 mm |
| Fastening | Plate |
| Temperature | -40 °C to +80 °C |
| Material | Stainless steel, Polyamide 6G |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Do not exceed the maximum load capacity per castor. Values apply to level, hard floor surfaces. Allow for load capacity losses due to wear.
