Technisches Datenblatt

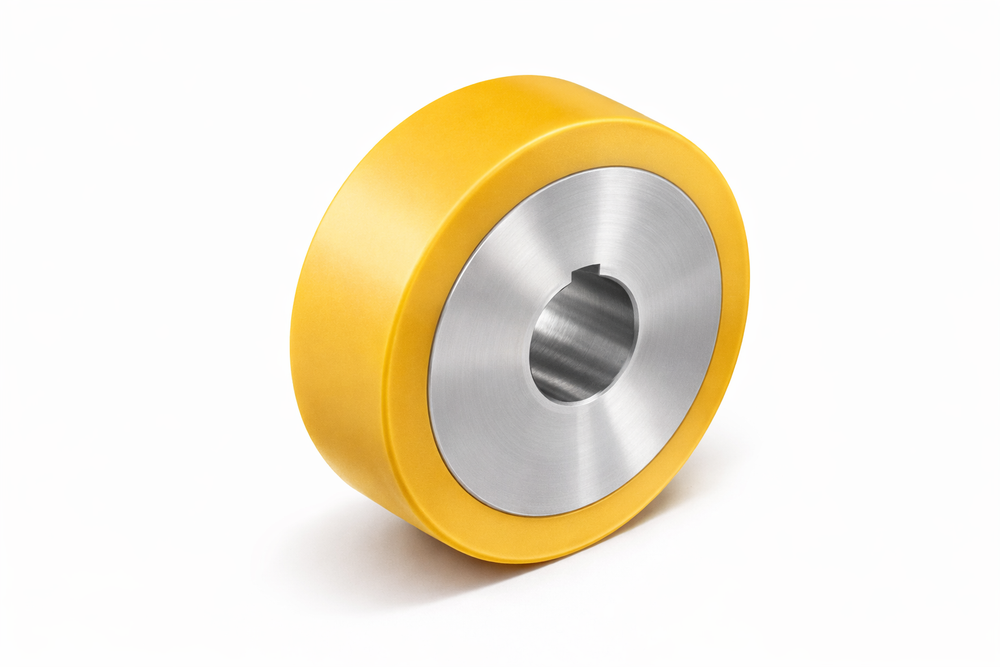

160 x 50 mm drive wheel Bo:30 mm with polyurethane tread, aluminum rim
Artikelnummer: 6901-ATR/160/50/50/30
castors-direct.com
Beschreibung
Heavy-duty drive wheel for industrial applications. The wide polyurethane running surface ensures optimal power transmission, smooth running and long service life in continuous operation.
Technische Daten
| Rad-Ø | 160 mm |
|---|---|
| Radbreite | 50 mm |
| Achsloch-Ø | 30 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 50 mm |
| Nabennutbreite (N1) | 3.3 mm |
| Nabennuthöhe (N2) | 8mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 750 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 30.0mm |
| Nabenlaenge | 50.0 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 160 mm |
| Tragkraft | 750.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Gewicht | 550 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is intended for use in industrial machinery, conveyor systems, automated guided vehicles (AGV), industrial trucks, or comparable technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may only ...
