Technisches Datenblatt

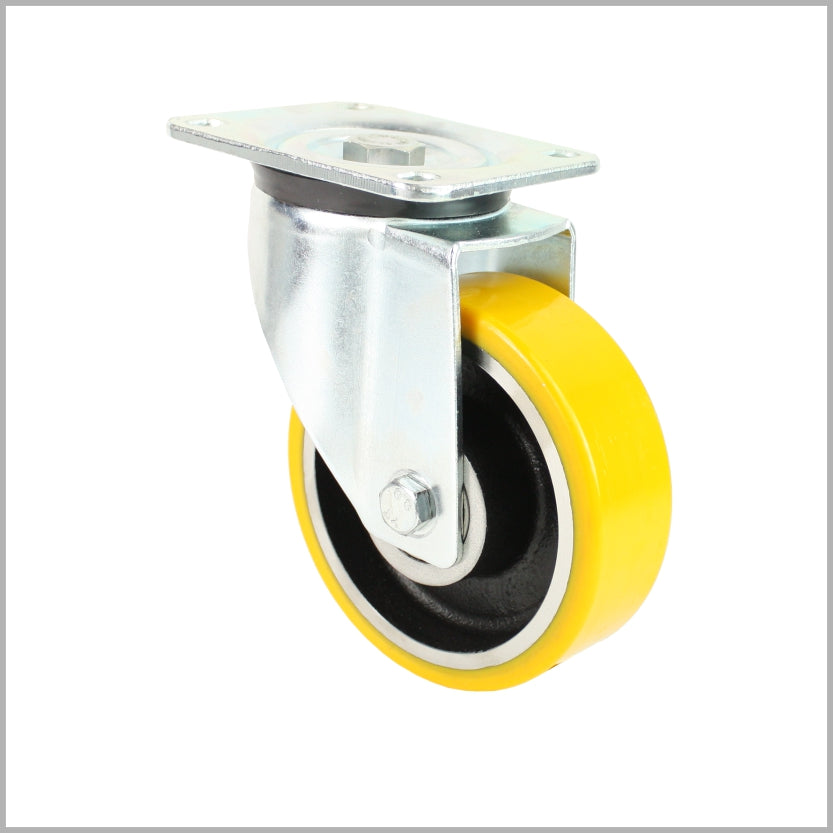

200 mm heavy-duty swivel castor, PU wheel, steel rim, ball bearing - LL/120K/200/50
Artikelnummer: L-L/120K/200/50
Beschreibung
200 mm heavy-duty swivel castor for high industrial loads This swivel castor is designed for heavy loads and harsh operating conditions. The PU wheel on a cast steel rim offers high load capacity and good running characteristics. Heavy-duty steel sheet swivel castor Polyurethane wheel with 92° Shore A Cast steel rim for maximum load capacity Ball bearings for smooth running Ideal for mechanical engin...
Technische Daten
| Rad-Ø | 200 mm |
|---|---|
| Radbreite | 50 mm |
| Bauhöhe | 235 mm |
| Tragfähigkeit | 800 kg |
| Plattenmaß | 140 x 110 mm |
| Lochbild | 105 x 80 mm |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 60.0mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Anschraubloch | 11.0 mm |
| Bauhohe | 235 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 200 mm |
| Tragkraft | 800.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Tragfähigkeitsklasse | up to 1000 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Swivel Castor Do not exceed maximum load capacity per castor – distribute total load evenly across all castors Use only on level, clean surfaces – unevenness, rails or gaps can lead to jamming Never use swivel castors as sole fastening – always combine with sufficient fixed castors (Recommendation: 2 swivel + 2 fix...
