Technical datasheet

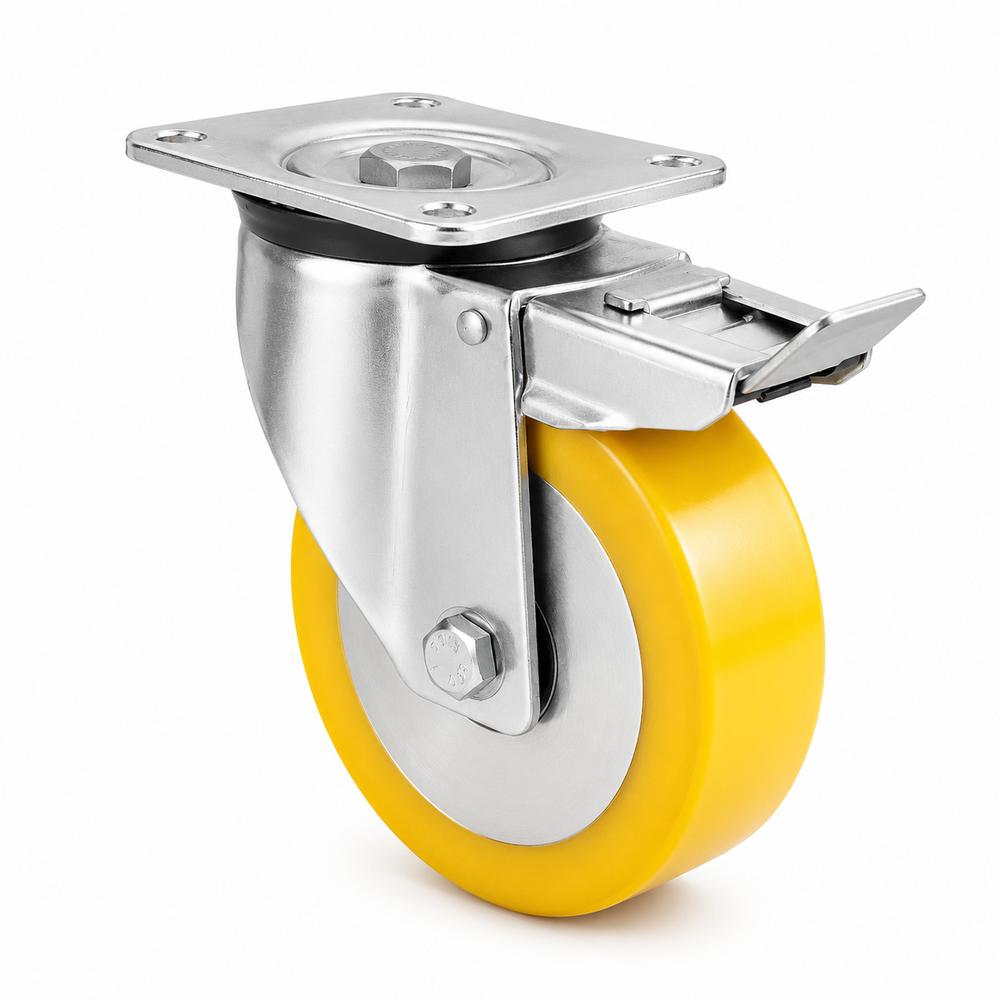

200 mm Swivel castor with brake PU wheel, flat / crowned, ball bearing

Item number: LTB-L/690KFL/200/50

Variant: flat

Description

200 mm swivel castor with brake with PU wheel – flat or crowned Robust swivel castor with brake with a high-quality PU wheel and solid aluminium core as the rim. Available with either a flat or crowned tread – both versions at the same price. Designed for industry, warehousing and stage technology under high loads. Suitable for daily, intensive multi-shift operation with demanding transport tasks.

200 mm Swivel castor with brake PU wheel, flat, ball bearing

Technical data

Wheel diameter (D) 200 mm
Wheel width (B) 50 mm
Load capacity 800 kg
Overall height 235 mm
Offset 60.0mm
Hole Ø 11 mm
Bolt hole spacing 105 x 80 mm
Plate size 140 x 110 mm
Fastening Plate
Temperature -20 °C to +80 °C
Tread hardness 92 Shore A
Material Polyurethane (PU)

Manufacturer

rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987

Safety information

Swivel castor Do not exceed the maximum load capacity per castor – distribute the total load evenly across all castors Use only on level, clean surfaces – unevenness, rails or gaps may cause jamming Never use swivel castors as the sole fastening – always combine with sufficient fixed castors (recommendation: 2 swiv...
