Technisches Datenblatt

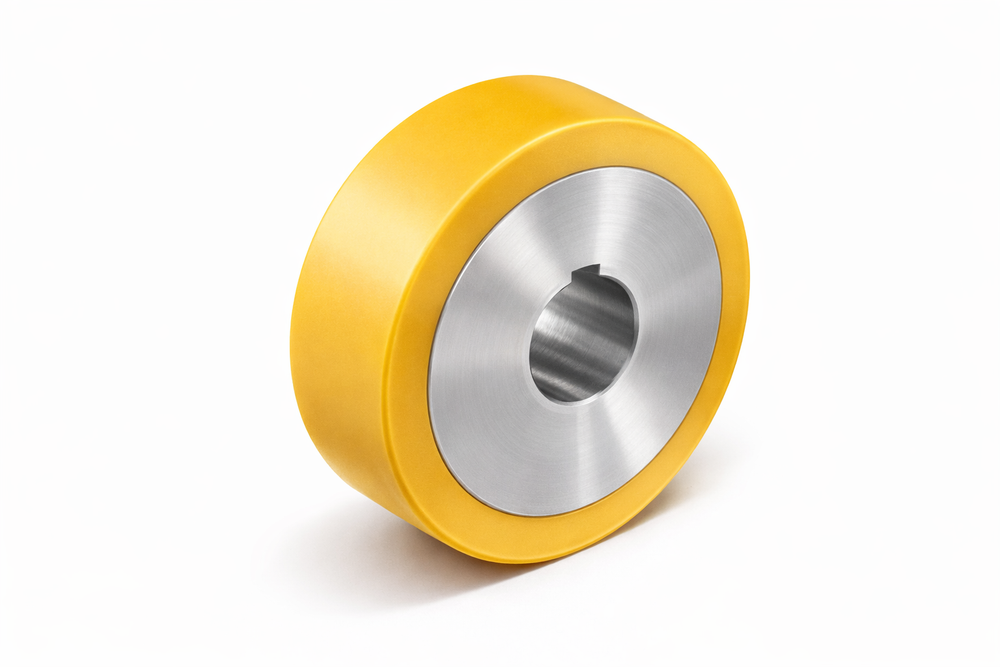

200 x 50 mm drive wheel Bo:25 mm, PU wheel, aluminum rim - 6901-ATR/200/50/60/25
Artikelnummer: 6901-ATR/200/50/60/25
castors-direct.com
Beschreibung
Drive wheel with a 200 mm diameter and 25 mm bore for flexible drive solutions. Polyurethane tread and aluminum rim guarantee high load capacity and durability.
Technische Daten
| Rad-Ø | 200 mm |
|---|---|
| Radbreite | 50 mm |
| Achsloch-Ø | 25 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 60 mm |
| Nabennutbreite (N1) | 3.3 mm |
| Nabennuthöhe (N2) | 8mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 1100 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 25.0mm |
| Nabenlaenge | 60.0 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 200 mm |
| Tragkraft | 1100.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Gewicht | 800 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is designed for use in industrial machinery, conveyor systems, automated guided vehicles (AGVs), industrial trucks, or similar technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may only be...
