Technisches Datenblatt

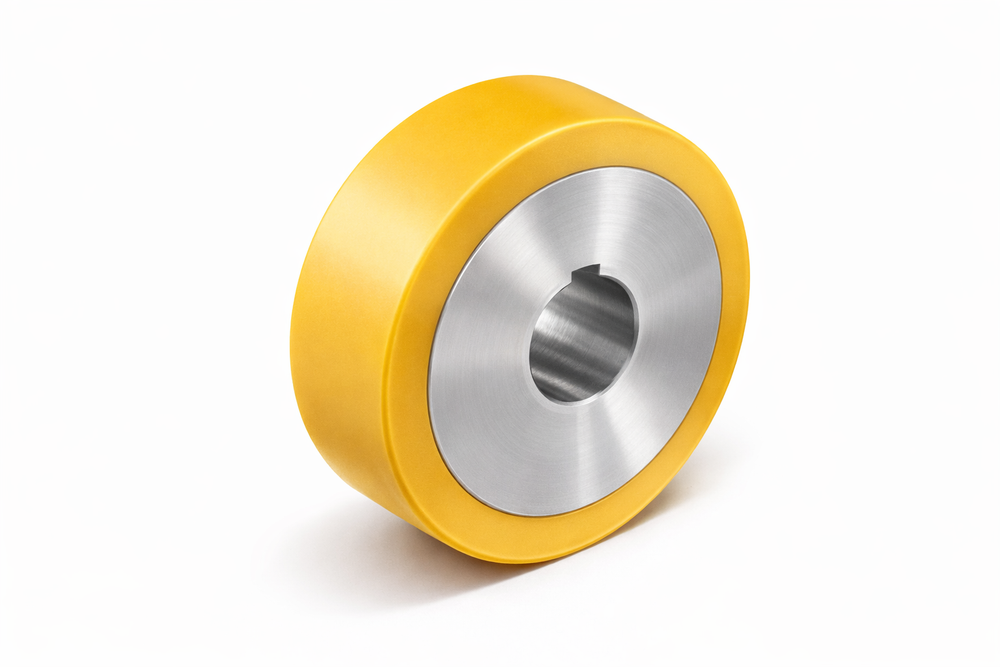

200 x 50 mm drive wheel Bo:30 mm with polyurethane tread, aluminum rim
Artikelnummer: 6901-ATR/200/50/50/30
castors-direct.com
Beschreibung
Large drive wheel for heavy loads and demanding industrial applications. The polyurethane tread is abrasion-resistant and ensures high traction and a long service life.
Technische Daten
| Rad-Ø | 200 mm |
|---|---|
| Radbreite | 50 mm |
| Achsloch-Ø | 30 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 50 mm |
| Nabennutbreite (N1) | 3.3 mm |
| Nabennuthöhe (N2) | 8mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 1100 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 30.0mm |
| Nabenlaenge | 50.0 mm |
| Radbreite | 50.0 mm |
| Rad durchmesser | 200 mm |
| Tragkraft | 1100.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Gewicht | 800 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is designed for use in industrial machinery, conveyor systems, automated guided vehicles (AGV), industrial trucks, or comparable technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may only ...
