Technisches Datenblatt

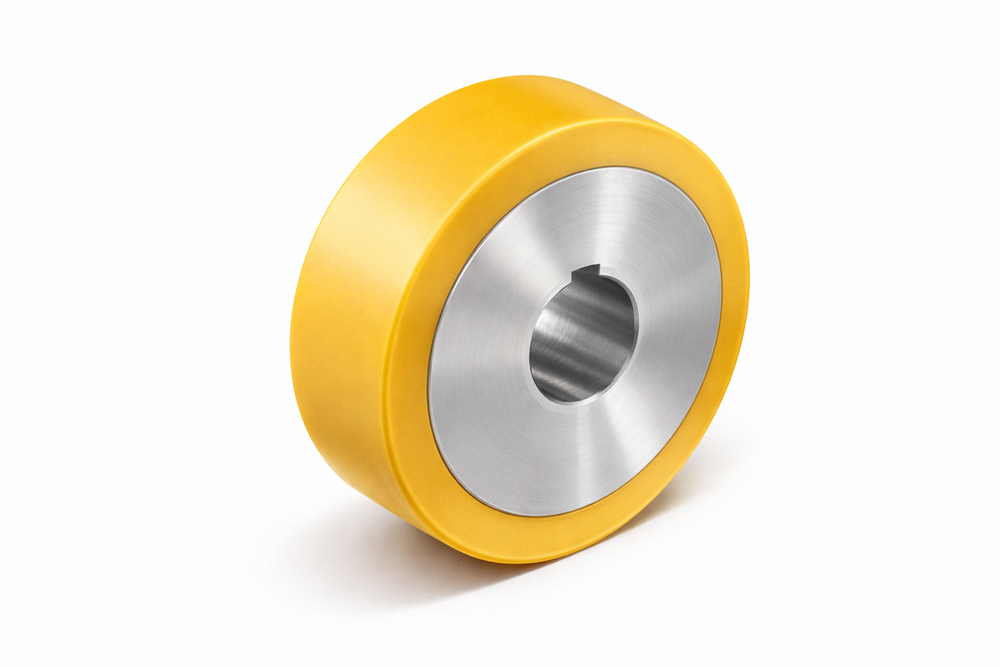

250 x 60 mm drive wheel Bo:25 mm, polyurethane tread, aluminum rim - 6901-ATR/250/60/60/25
Artikelnummer: 6901-ATR/250/60/60/25
castors-direct.com
Beschreibung
Heavy-duty drive wheel for maximum industrial demands. The wide polyurethane tread offers high traction, smooth running, and extreme wear resistance.
Technische Daten
| Rad-Ø | 250 mm |
|---|---|
| Radbreite | 60 mm |
| Achsloch-Ø | 25 mm |
| Achsloch-Passung | H7 |
| Nabenlänge | 60 mm |
| Nabennutbreite (N1) | 2.3 mm |
| Nabennuthöhe (N2) | 5mm |
| Passung Nabennut | JS9 |
| Tragfähigkeit | 1400 kg |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Bohrung | 25.0mm |
| Nabenlaenge | 60.0 mm |
| Radbreite | 60.0 mm |
| Rad durchmesser | 250 mm |
| Tragkraft | 1400.0 kg |
| Material | Polyurethane (PU), Aluminium |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | Gelb |
| Gewicht | 1000 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Sicherheitshinweis
Product Safety – Drive Wheels Intended Use This drive wheel is intended for use in industrial machinery, conveyor systems, automated guided vehicles (AGVs), industrial trucks, or similar technical systems. The product may only be used in accordance with its technical specifications. Installation Installation may...
