Technical datasheet

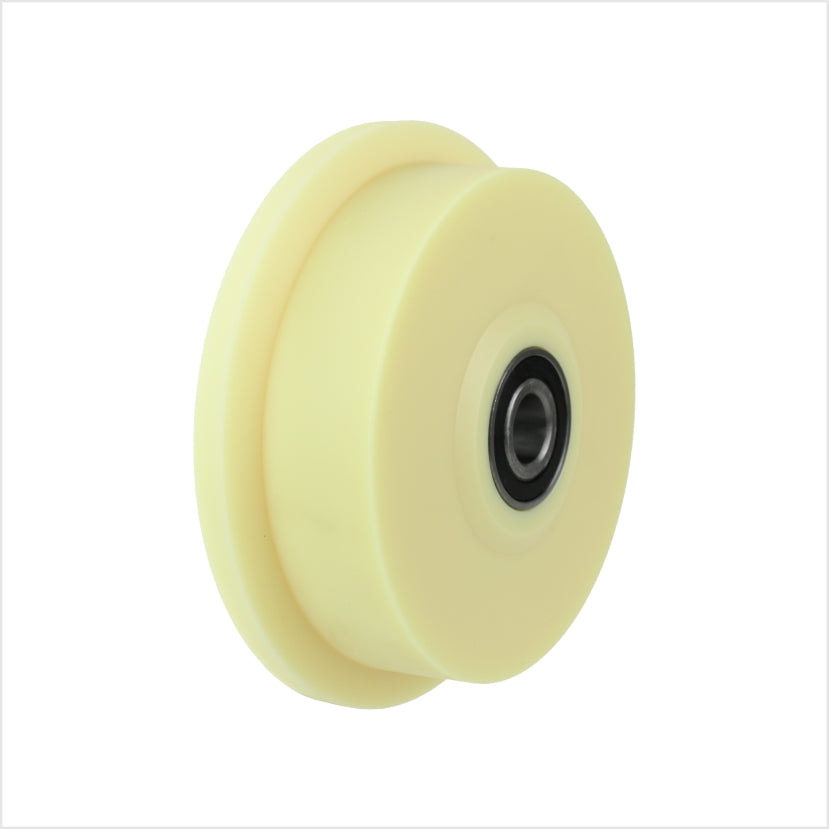

Flanged Wheel | 300 x 80 mm | Polyamide 6G | Ball Bearing | Hub Keyway | 3° Tread
Item number: SPR-2505K/300/350/80/90
Variant: with ball bearing
Description
Precision-machined flanged wheel made of cast polyamide 6G for continuous use in rail and profile guides. The circumferential flange keeps the wheel securely on the running surface – whether on flat rails, angle irons or special profiles – and prevents it from breaking out laterally, even under load and lateral forces. Material
Technical data
| Wheel diameter (D) | 300 mm |
|---|---|
| Spurkranz-Ø (D2) | 350 mm |
| Wheel width (B) | 80 mm |
| Laufbreite (T) | 55 mm |
| Load capacity | 3400 kg |
| Axle hole (d1) | 40 mm |
| Hub length (C) | 90 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +80 °C |
| Material | Polyamid 6G |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Exclusively for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the wheel firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear, and damage. Replace damaged wheels immediately.
