Technical datasheet

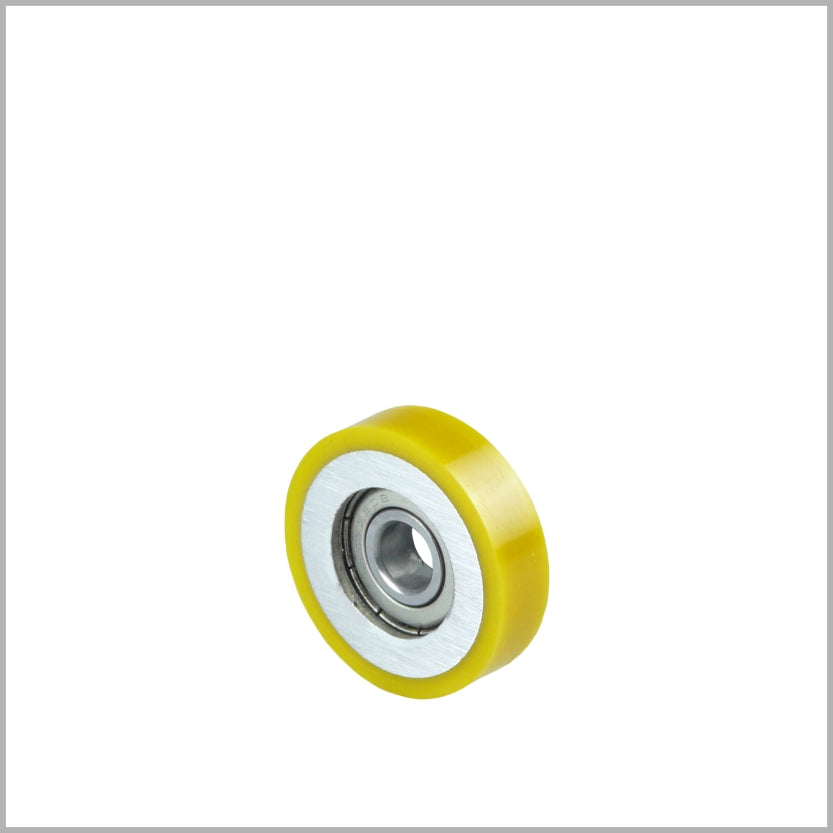

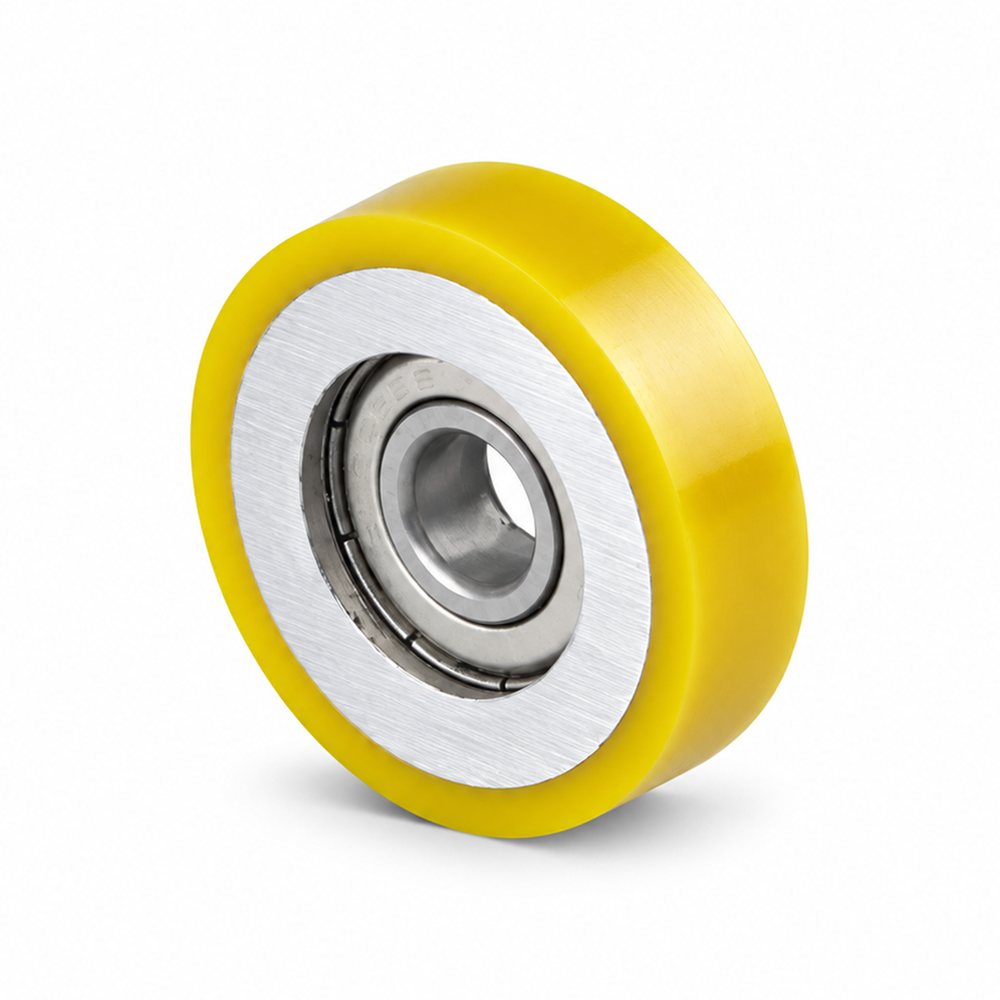

33 × 9 mm Polyurethane guide roller with solid aluminium core – 70 kg, ball bearing
Item number: 690KFL/033/09/09/08
castors-direct.com
Description
The polyurethane guide roller 33 × 9 mm is a compact precision wheel for guiding and replacement applications. Despite its small size, it carries up to 70 kg per wheel and runs particularly smoothly thanks to the grooved ball bearing.
Technical data
| Wheel diameter (D) | 33 mm |
|---|---|
| Wheel width (B) | 9 mm |
| Hub length (C) | 9 mm |
| Bore (d1) | 8 mm |
| Load capacity | 70 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU) |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
