Technical datasheet

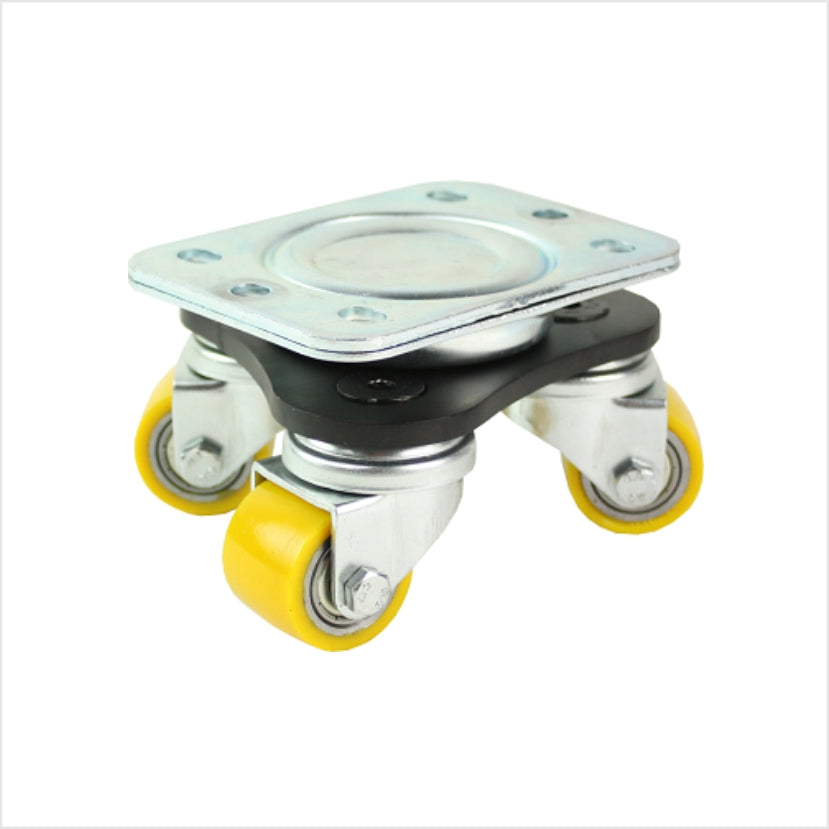

Mini heavy-duty turntable bearing | smallest PU wheels 35 mm | height 75 mm | load capacity 300 kg
Item number: DRT-MIS/690K/035
castors-direct.com
Description
Mini-Heavy Duty Turntable Dolly with the smallest PU wheels! Ball bearings in the wheel Thrust bearing plate as swivel bearing Low overall height 75 mm High load capacity 300 kg Very easy to swivel With 3 of the smallest PU wheels Mini heavy-duty wheels 35 mm
Technical data
| Wheel diameter (D) | 35 mm |
|---|---|
| Wheel width (B) | 27 mm |
| Drehradius | 75mm |
| Load capacity | 300 kg |
| Overall height | 75 mm |
| Lochbild | 80 x 55-60 mm |
| Plattenmaß | 115x85 mm |
| Schraubloch-Ø | 9 mm |
| Fastening | Plate |
| Material | Polyurethane (PU) |
| Temperature | -20°/+80° C. Continuous operation |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
