Technisches Datenblatt

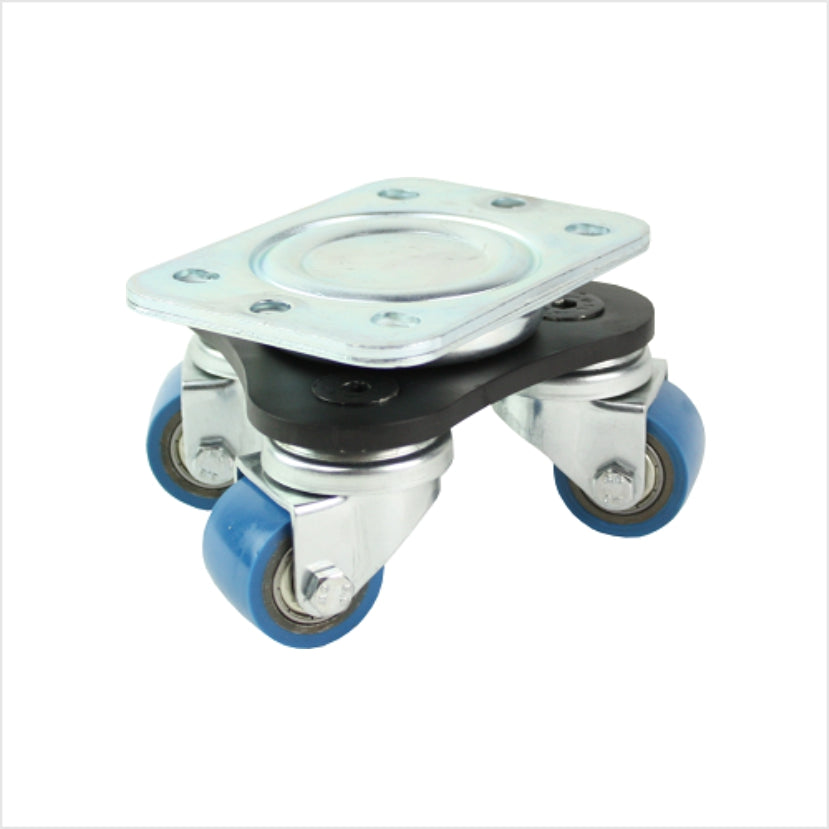

35 mm mini heavy stage swivel with soft polyurethane wheel
Artikelnummer: DRT-MIS/680K/035
castors-direct.com
Beschreibung
35 mm Mini Heavy Duty Turntable with soft polyurethane wheel soft, floor-friendly wheel tread 2 ball bearings in the wheel thrust bearing plate as swivel bearing low overall height - high load capacity with 3 rollers from the Mini Heavy Duty Castors 35 mm series
Technische Daten
| Rad-Ø | 35 mm |
|---|---|
| Radbreite | 27 mm |
| Bauhöhe | 75 mm |
| Tragfähigkeit | 300 kg |
| Plattenmaß | 105 x 80 mm |
| Lochbild | 80 x 60 mm |
| Ausladung / Drehradius | 75 mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20°/+80° C. Continuous operation |
| Bauhohe | 75 mm |
| Radbreite | 27.0 mm |
| Rad durchmesser | 35 mm |
| Tragkraft | 300.0 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 75° Shore A. |
| Farbe | Blau |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
