Technical datasheet

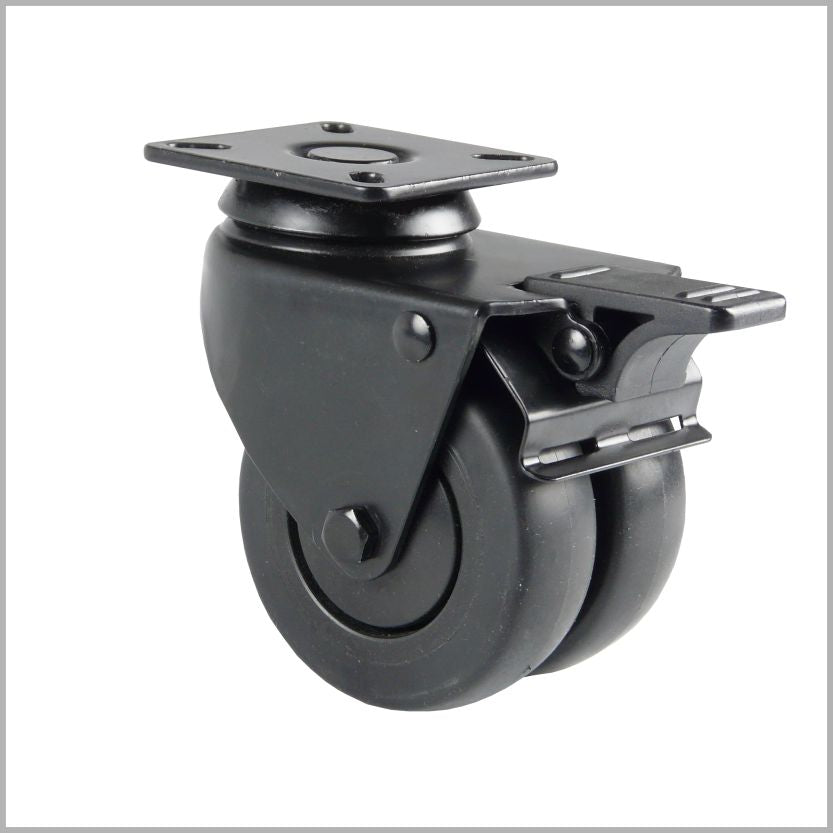

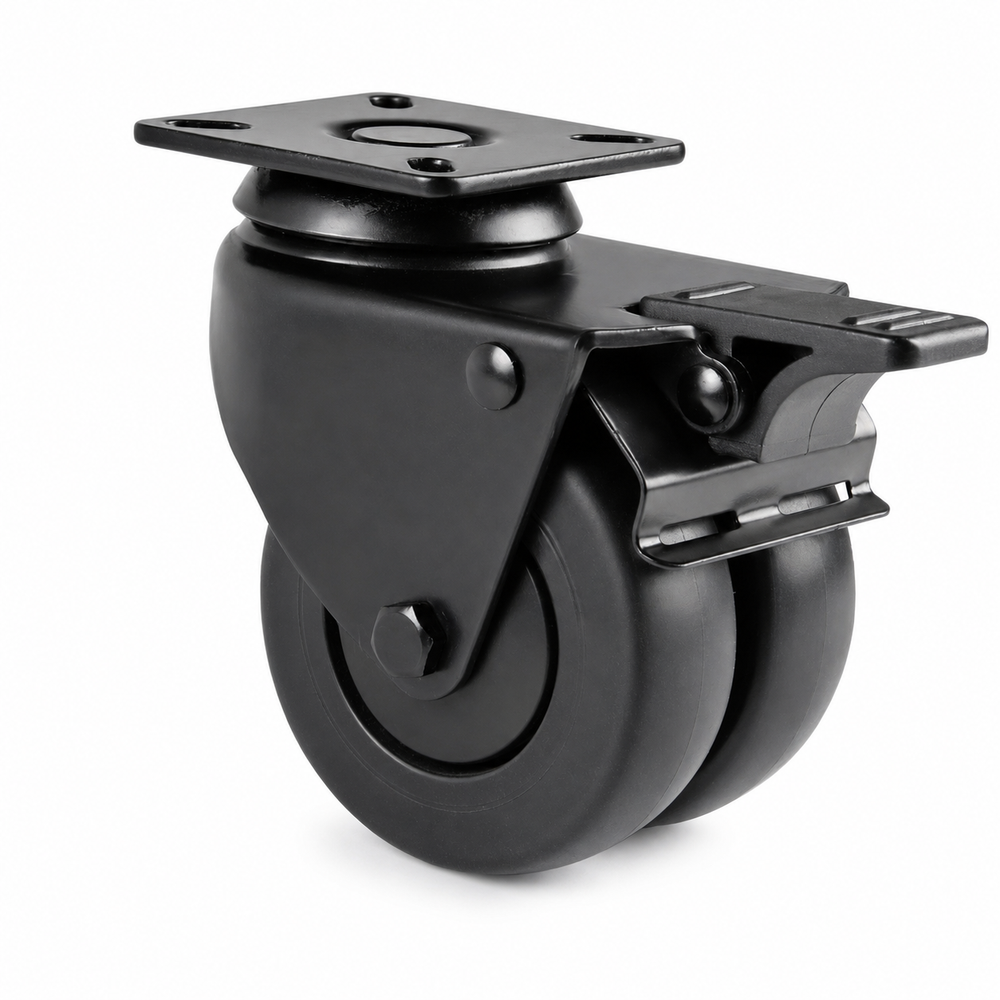

50 mm Black twin wheel swivel castor | brake – top plate | shopfitting | retail systems
Item number: LTB-DAPS/310K/050
castors-direct.com
Description
Black twin wheel swivel castor with top plate fixing and brake with top plate fixing with two black rubber wheels non-marking rubber ball bearing in the wheel black coating on all metal parts
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 36 mm |
| Load capacity | 50 kg |
| Overall height | 73 mm |
| Bolt hole spacing | 45 x 45 mm Angled hole |
| Plate size | 60x60 mm |
| Fastening | Plate |
| Weight | 180 g |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 65 Shore A |
| Material | Rubber |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
