Technisches Datenblatt

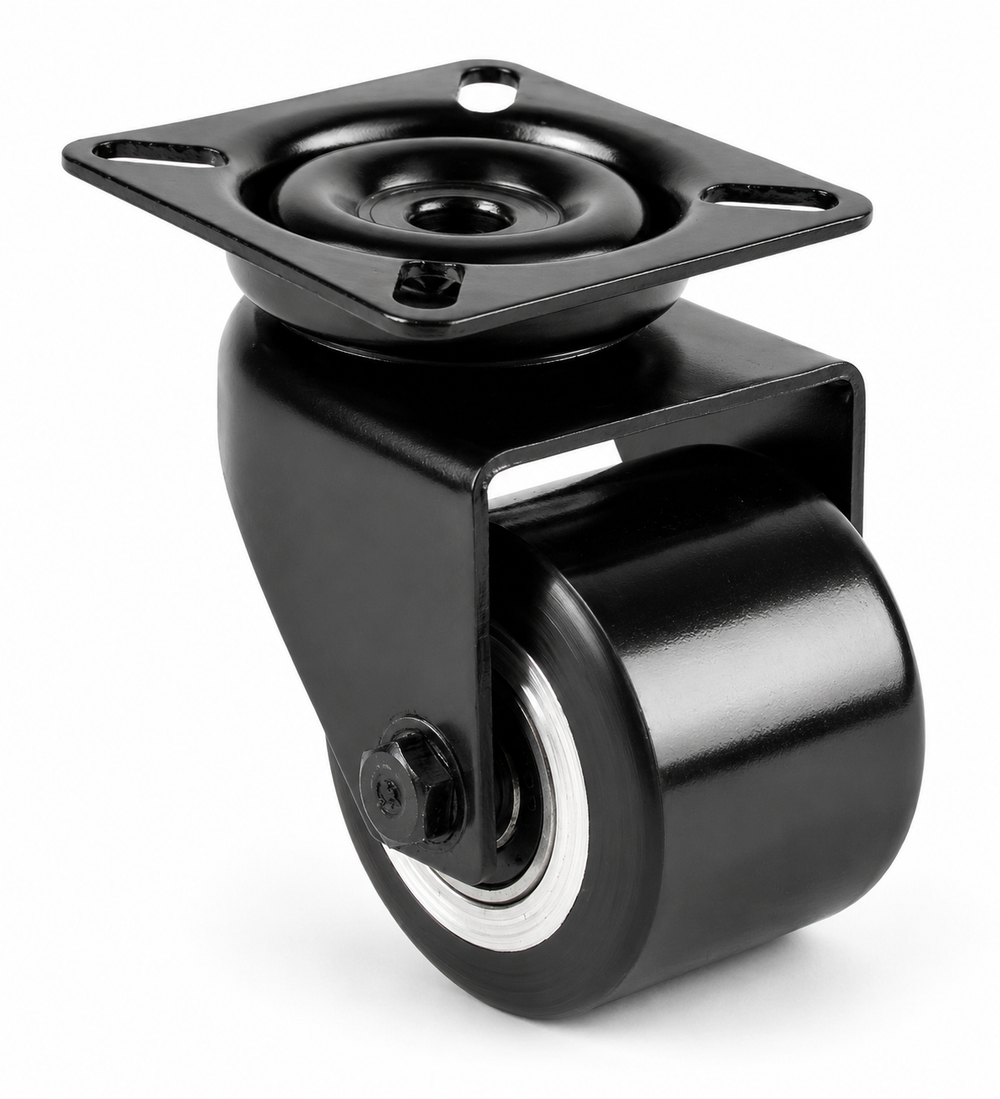

50 mm Mini Heavy-Duty Swivel Castor | 100 kg | Plate 60 x 60 mm | Polyurethane Wheel | Black
Artikelnummer: L-DAPS/691KFL/050/40
Ausführung: flat
castors-direct.com
Beschreibung
Black 50 mm mini heavy-duty swivel castor with polyurethane wheel and ball bearing. Plate mounting, compact overall height, high load capacity – ideal for industry, shopfitting and technical applications. Wheel diameter: 50 mm Wheel width: 40 mm Overall height: 73 mm Load capacity: 100 kg Plate: 60 x 60 mm Bolt hole spacing: 40 x 40 mm Bolt hole: 6,5 mm Offset: 30 mm Wheel: black polyurethane, ball bearing Tread: ...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 73 mm |
| Tragfähigkeit | 100 kg |
| Plattenmaß | 60 x 60 mm |
| Lochbild | 40 x 40 mm |
| Ausladung / Drehradius | 30 mm |
| Befestigung | Platte |
| Temperaturbereich | '-20° / +80° C. |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 6.5 mm |
| Bauhohe | 73 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 50 mm |
| Tragkraft | 100.0 kg |
| Tragfähigkeitsklasse | up to 150 kg |
| Gewicht | 0.4 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
