Technisches Datenblatt

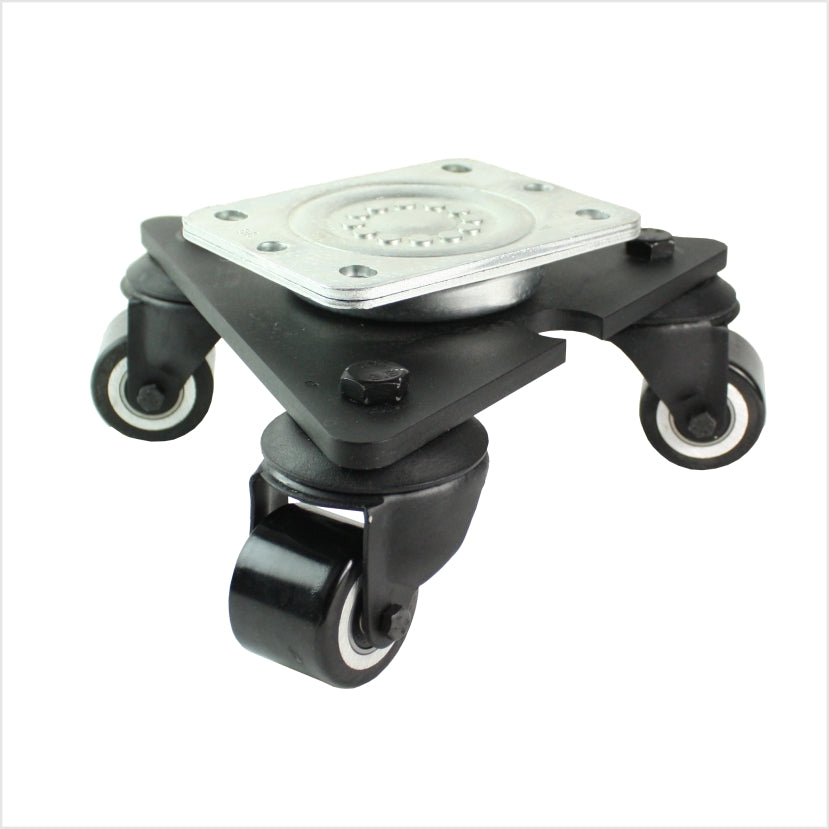

50 mm Heavy Duty Mini Swivel Castor | Black Flat Polyurethane Wheel | for Grandstands & Carts
Artikelnummer: DRT-MIS/691KFL/050/40
castors-direct.com
Beschreibung
Mini heavy-duty turntable chassis with black polyurethane wheels ball bearings in the wheel Thrust bearing plate as swivel bearing flat tread Low profile - high load-bearing capacity extremely easy to swivel with 3 mini heavy-duty castors 50 x 40 mm
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 108 mm |
| Tragfähigkeit | 450 kg |
| Plattenmaß | 140 x 110 mm |
| Lochbild | 105 x 77 mm |
| Schraubloch-Ø | 11 mm |
| Ausladung / Drehradius | 116 mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20°/+80° C. Continuous operation |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 11.0 mm |
| Bauhohe | 108 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 50mm |
| Tragkraft | 450.0 kg |
| Material | Polyurethane (PU), Metall |
| Härte der Lauffläche | 92° Shore A. |
| Farbe | black |
| Tragfähigkeitsklasse | up to 500 kg |
| Gewicht | 600 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
