Technical datasheet
50 mm Mini heavy-duty turntable | tough polyurethane wheel | flat | floor-friendly | wide contact area
Item number: DRT-MIS/690KFL/050/40
castors-direct.com
Description

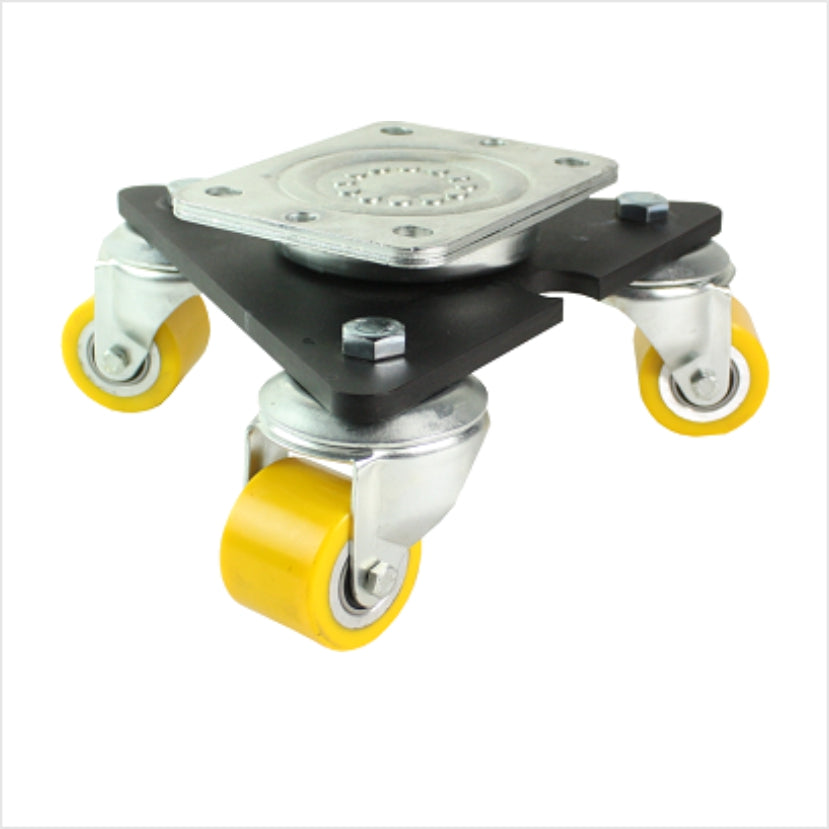

The yellow 50-mm mini heavy-duty turntable bearing combines the smallest overall height with high load capacity. With three swivel castors on the smallest polyurethane wheels – also known in stage technology as Turtle or Stage Swivel – you can move decorative construction, rotating stages and set construction effortlessly from any position.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Turning radius | 116 mm |
| Load capacity | 450 kg |
| Overall height | 108 mm |
| Bolt hole spacing | 105 x 77 mm |
| Plate size | 140 x 110 mm |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane (PU), Metal |
| Temperature | -20 °C to +80 °C (continuous operation) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
