Technisches Datenblatt
50 mm mini heavy-duty swivel castor, e.g. for mobile workstations
Artikelnummer: R-MIS/690KBA/050/40
Ausführung: Standard role / spherical
castors-direct.com
Beschreibung

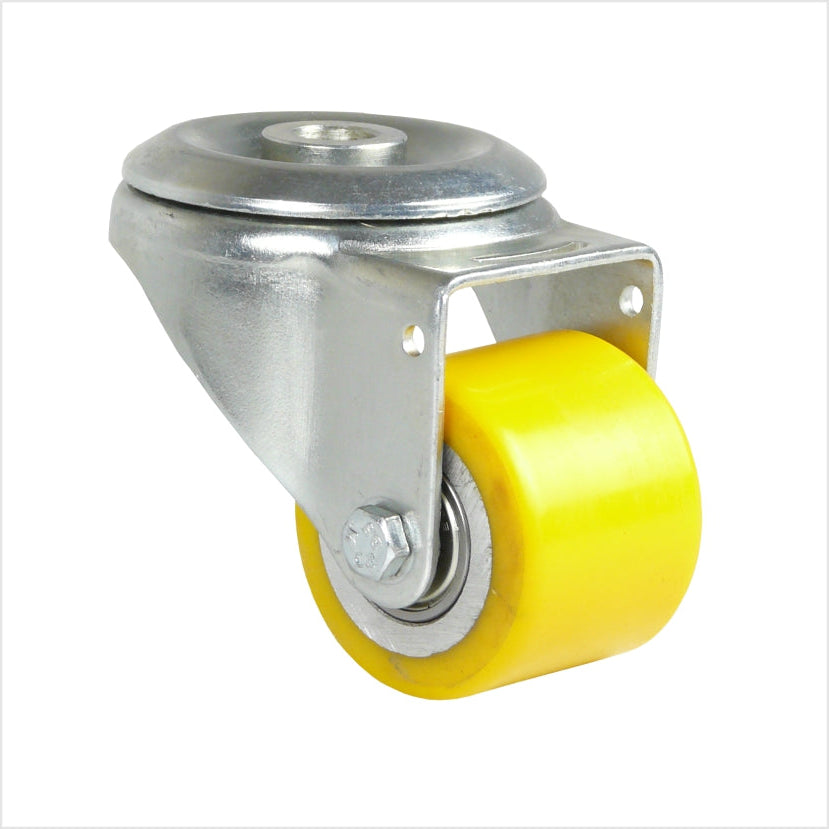

50 mm Swivel Castor with Top Bolt Hole – Robust, Smooth-Running & Floor-Friendly This high-quality swivel castor features an extremely stable housing and a wide polyurethane wheel with very low rolling resistance. The flat tread is particularly gentle on floors and ensures quiet, controlled movement. Versions Single Wheel: 50 × 40 mm Twin Wheel: 2 × 20 mm for better load distribution and particularly easy ...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 76 mm |
| Tragfähigkeit | 180 kg |
| Plattenmaß | - |
| Lochbild | - |
| Schraubloch-Ø | 12 mm |
| Ausladung / Drehradius | 35mm |
| Befestigung | bolt hole |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 10.2 mm |
| Bauhoehe | 76 mm |
| Bauhohe | 76 mm |
| Radbreite | 40 mm |
| Rad durchmesser | 50 mm |
| Tragkraft | 150 kg |
| Material | Polyurethane (PU) |
| Härte der Lauffläche | 92 Shore A |
| Farbe | Gelb |
| Tragfähigkeitsklasse | mini heavy duty castors |
| Gewicht | 220 g |
Hersteller
roll-direct
