Technical datasheet

V-groove 90° / 12 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 50 mm, ball bearing

Item number: DSPV-9743K/050/18/12

Description

This V-groove 90° / 12 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 50 mm, ball bearing is designed for use on suitable angle rails, angle profiles and industrial rail guides. The 90° V-groove supports smooth running of the roller on suitable angle profiles.

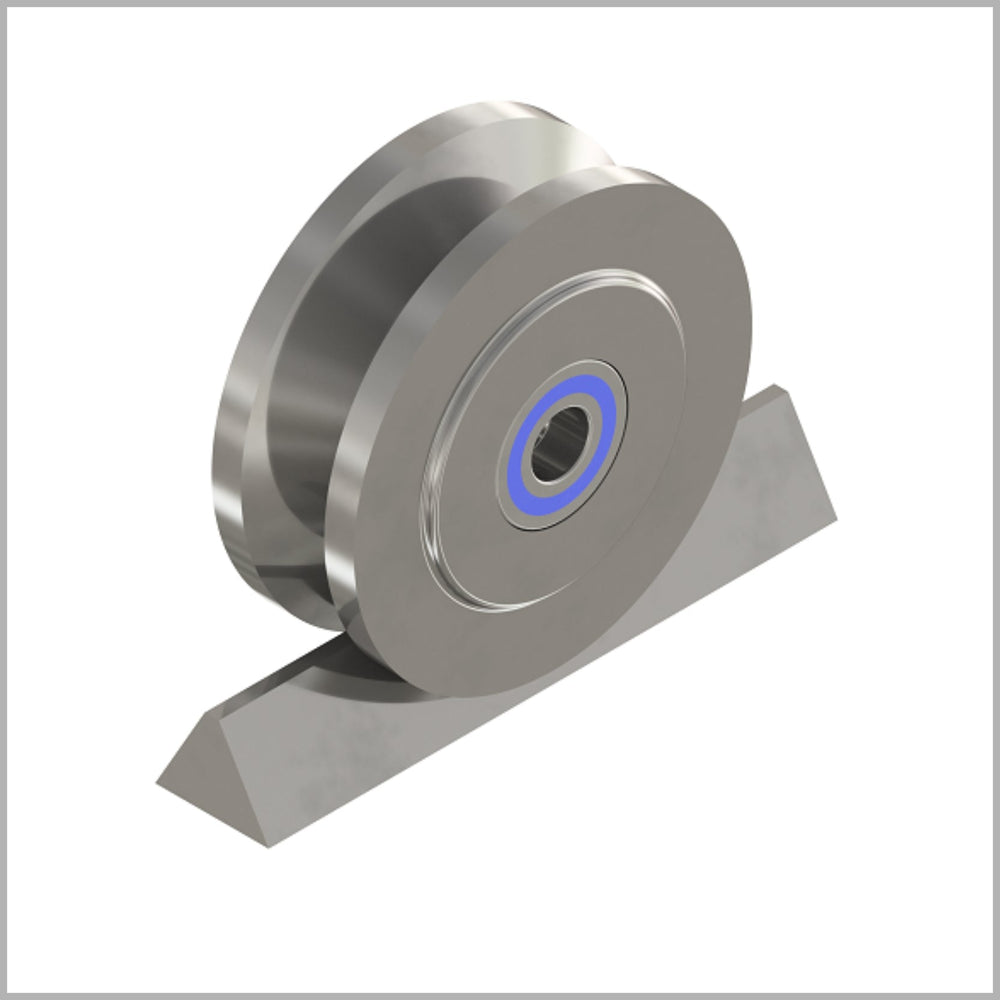

V-groove 90° / 12 mm guide roller for angle rails made of stainless steel / 1.4301 – Ø 50 mm, ball bearing – DSPV-9743K/050/18/12

Technical data

Wheel diameter (D) 50 mm
Wheel width (B) 18 mm
Load capacity 120 kg
Groove width (E) 12mm
Bore (d1) 10 mm
Hub length (C) 18 mm
Conductivity Conductive
Groove depth 6 mm
Temperature -20 °C to +100 °C
Tread hardness 200 230 HB
Material AISI 304, Stainless steel 1.4301

Manufacturer

rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone +49 2307 9645254
