Technical datasheet

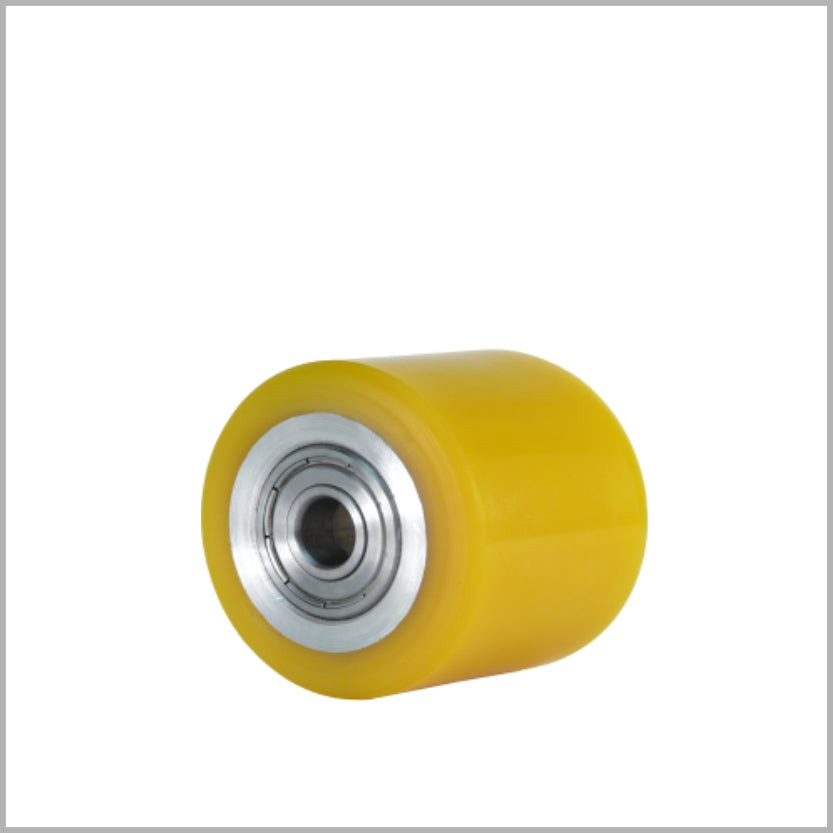

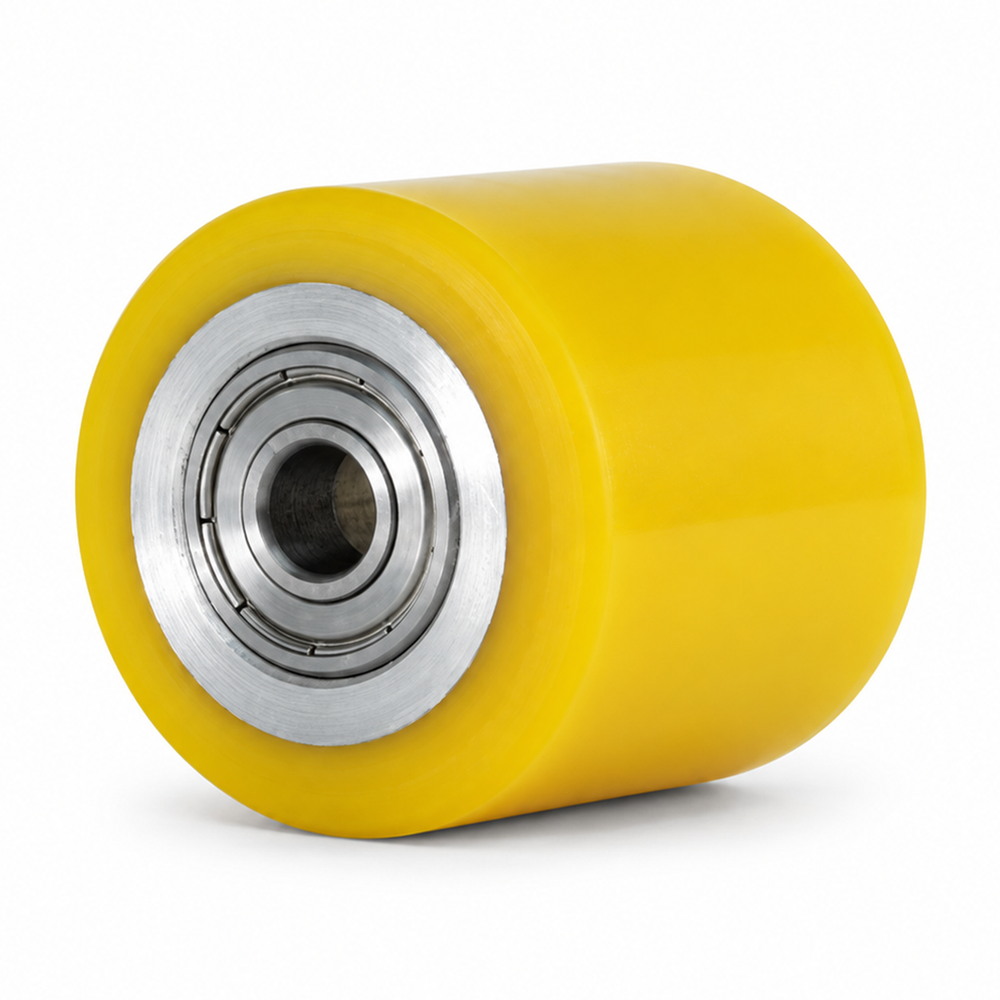

50 × 40 mm Heavy-duty polyurethane wheel with solid aluminium core – 150 kg, ball bearing, flat & crowned
Item number: 690KFL/050/40/40/10
Variant: flat
castors-direct.com
Description
The heavy-duty polyurethane wheel 50 × 40 mm combines a wide, non-marking PU tread with a solid solid aluminium core. With a load capacity of 150 kg per wheel and an overall diameter of only 50 mm, it is an ideal all-rounder for stationary and mobile industrial applications.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Hub length (C) | 40 mm |
| Bore (d1) | 10 mm |
| Load capacity | 150 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
