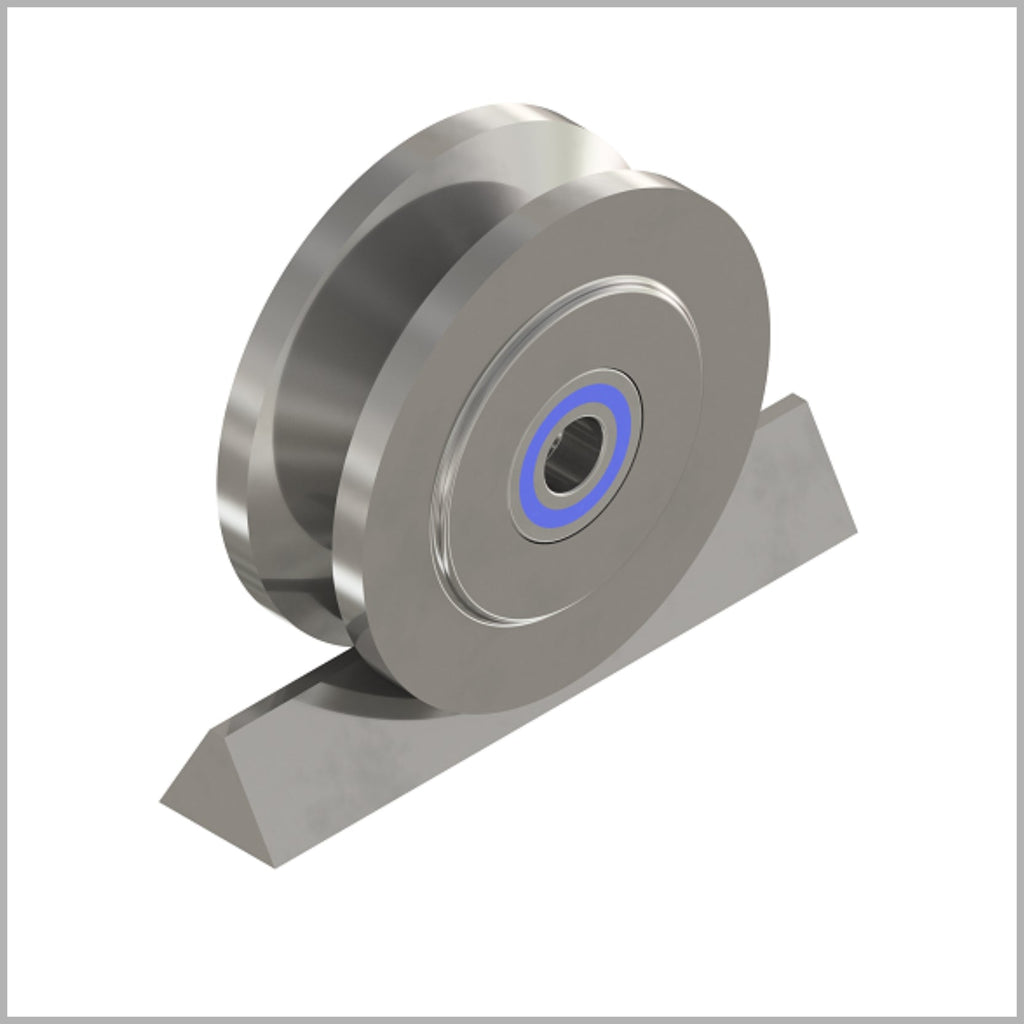

V-groove 90° / 14 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 60 mm, ball bearing

V-groove 90° / 14 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 60 mm, ball bearing – DSPV-9743K/060/20/14
81,85 €
incl. VAT
65,22 €
excl. VAT
Made to order
approx. 7–12 days
The item will be produced after receipt of your order.
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
60 mm
Wheel width (B)
20 mm
Load capacity
180 kg
Groove width (E)
14mm
Bore (d1)
12 mm
Hub length (C)
20 mm
Conductivity
Conductive
Groove depth
7 mm
Temperature
-20 °C to +100 °C
Tread hardness
200-230 HB
Material
AISI 304

V-groove 90° / 14 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 60 mm, ball bearing

This V-groove 90° / 14 mm guide roller for angle rails made of stainless steel 1.4301 / 1.4301 – Ø 60 mm, ball bearing is designed for use on suitable angle rails, angle profiles and industrial rail guides. The 90° V-groove supports smooth guidance of the roller on suitable angle profiles.

The roller is suitable as a guide roller, running roller or rail guide roller for technical applications in mechanical engineering, conveyor technology, plant engineering and gate and guide systems. Thanks to the combination of a defined V-groove geometry, robust material and ball bearing, it is designed for reliable operation in commercial use.

Technical features

  • Groove shape: 90° V-groove with 14 mm groove/recess dimension
  • Wheel diameter: Ø 60 mm
  • Material: stainless steel 1.4301
  • Bearing: ball bearing
  • Use: suitable angle rails, angle profiles and rail guides

Advantages in use

  • corrosion-resistant stainless steel for demanding environments
  • suitable for applications with increased moisture or cleaning exposure
  • precise guiding geometry for suitable angle rails
  • robust design for industrial guiding tasks

Typical applications

  • angle rails and angle profiles
  • rail guides and roller guides
  • mechanical engineering and special-purpose plant engineering
  • conveyor technology and internal transport systems
  • gate guides, flap guides and technical guiding systems

Note: Actual suitability depends on rail dimensions, angle profile, load, installation situation and environmental conditions. For technical applications, the roller should be selected to suit the existing rail and load.

Quantity discount: For larger quantities, an individual quote can be requested from 10 units.
