Technisches Datenblatt

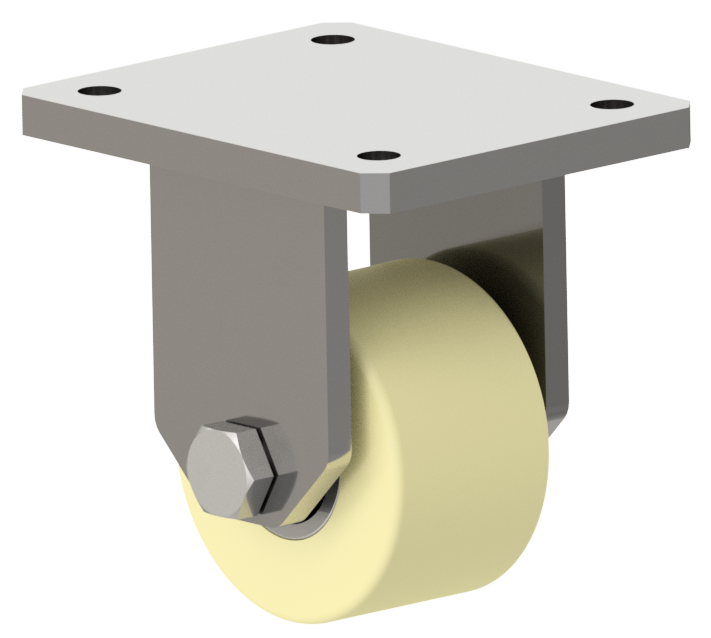

Heavy-duty fixed castor 65 mm | Polyamide wheel | Load capacity: 700 kg | Overall height: 95 mm
Artikelnummer: B-M/2505KFL/65/40
castors-direct.com
Beschreibung
65 mm Heavy Duty Fixed Castor – 700 kg – Overall Height 95 mm This compact heavy-duty fixed castor was developed for applications where an extremely low overall height is required while maintaining a high load capacity. With a 700 kg load capacity and an overall height of only 95 mm, it is ideal for tight installation situations. Advantages 700 kg load capacity with minimal overall height Only 95 mm overall hei...
Technische Daten
| Rad-Ø | 65 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 95 mm |
| Tragfähigkeit | 700 kg |
| Plattenmaß | 105 x 80 mm |
| Lochbild | 80 x 60 mm |
| Schraubloch-Ø | 9 mm |
| Ausladung / Drehradius | 0 mm |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Dämpfung | 0 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 9.0 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 65 mm |
| Tragkraft | 700.0 kg |
| Material | Polyamid 6G, Stahl |
| Härte der Lauffläche | 90 Shore D |
| Farbe | Beige |
| Tragfähigkeitsklasse | up to 1000 kg |
Hersteller
rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone: +49 (0)2307 - 9644984
