Technisches Datenblatt

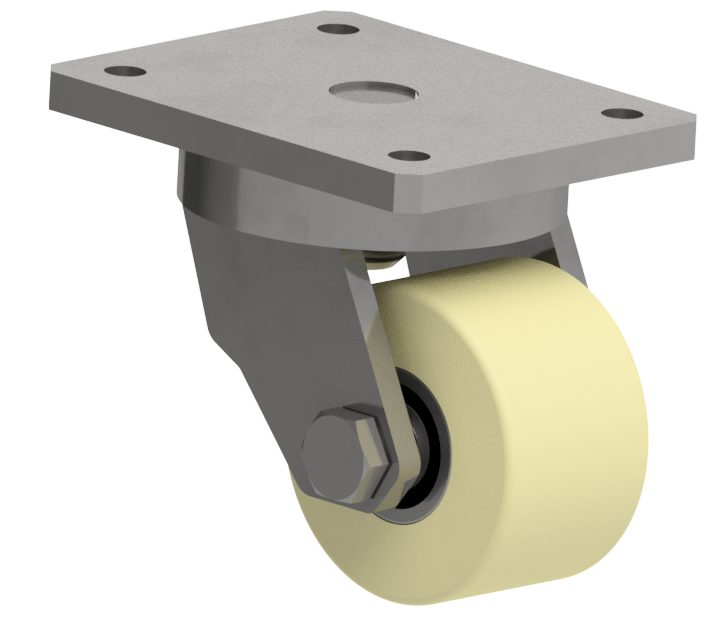

Heavy Duty Swivel Castor 65 mm | Polyamide Wheel | Load Capacity: 700 kg | Overall Height 95 mm
Artikelnummer: L-M/2505KFL/65/40
Beschreibung
65 mm Heavy Duty Swivel Castor – 700 kg – 95 mm Overall Height Compact heavy-duty swivel castor with a 700 kg load capacity and an extremely low overall height of 95 mm. Ideal for applications with limited space and high maneuverability. Advantages Swivel for maximum maneuverability 700 kg load capacity Only 95 mm overall height Steel welded heavy-duty housing Polyamide wheel for smooth running
Technische Daten
| Rad-Ø | 65 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 95 mm |
| Tragfähigkeit | 700 kg |
| Plattenmaß | 105 x 80 mm |
| Lochbild | 80 x 60 mm |
| Schraubloch-Ø | 9 mm |
| Ausladung / Drehradius | 30mm |
| Befestigung | plate |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Dämpfung | 0 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 9.0 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 65 mm |
| Tragkraft | 700.0 kg |
| Material | Polyamid 6G, Stahl |
| Härte der Lauffläche | 90 Shore D |
| Farbe | Beige |
| Tragfähigkeitsklasse | up to 1000 kg |
| Gewicht | 2.5 kg |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Phone 02307 - 9644980
Sicherheitshinweis
Swivel Caster Do not exceed the maximum load capacity per caster – distribute total load evenly across all casters Only use on even, clean surfaces – unevenness, rails or gaps can cause jamming Never use swivel casters as the sole attachment – always combine with a sufficient number of rigid casters (Recommendation...
