Technical datasheet

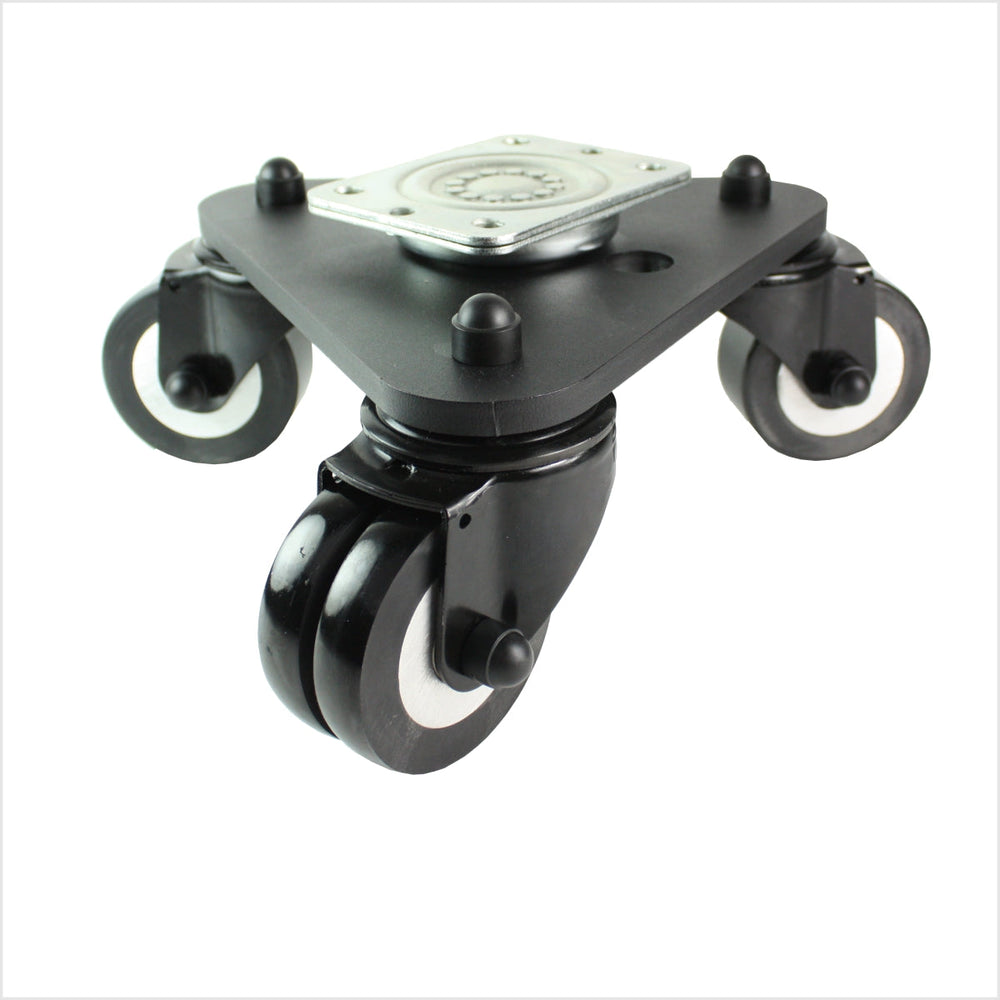

65 mm Black heavy-duty turntable bearing, 3 PU twin wheels, crowned - DRT-MG/691KBA/065/30
Item number: DRT-MG/691KBA/065/30
castors-direct.com
Description
The 65-mm-Schwerlast-Drehteller is a heavy steel-welded turntable bearing for high loads and a proprietary development by castors-direct.com. The special feature: the swivel bearings of the castor housings are integrated directly into the triangular plate – this gives the turntable bearing an extremely low overall height that is otherwise hardly available.
Technical data
| Wheel diameter (D) | 65 mm |
|---|---|
| Wheel width (B) | 60 mm |
| Turning radius | 175 |
| Load capacity | 1200 kg |
| Overall height | 125 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
