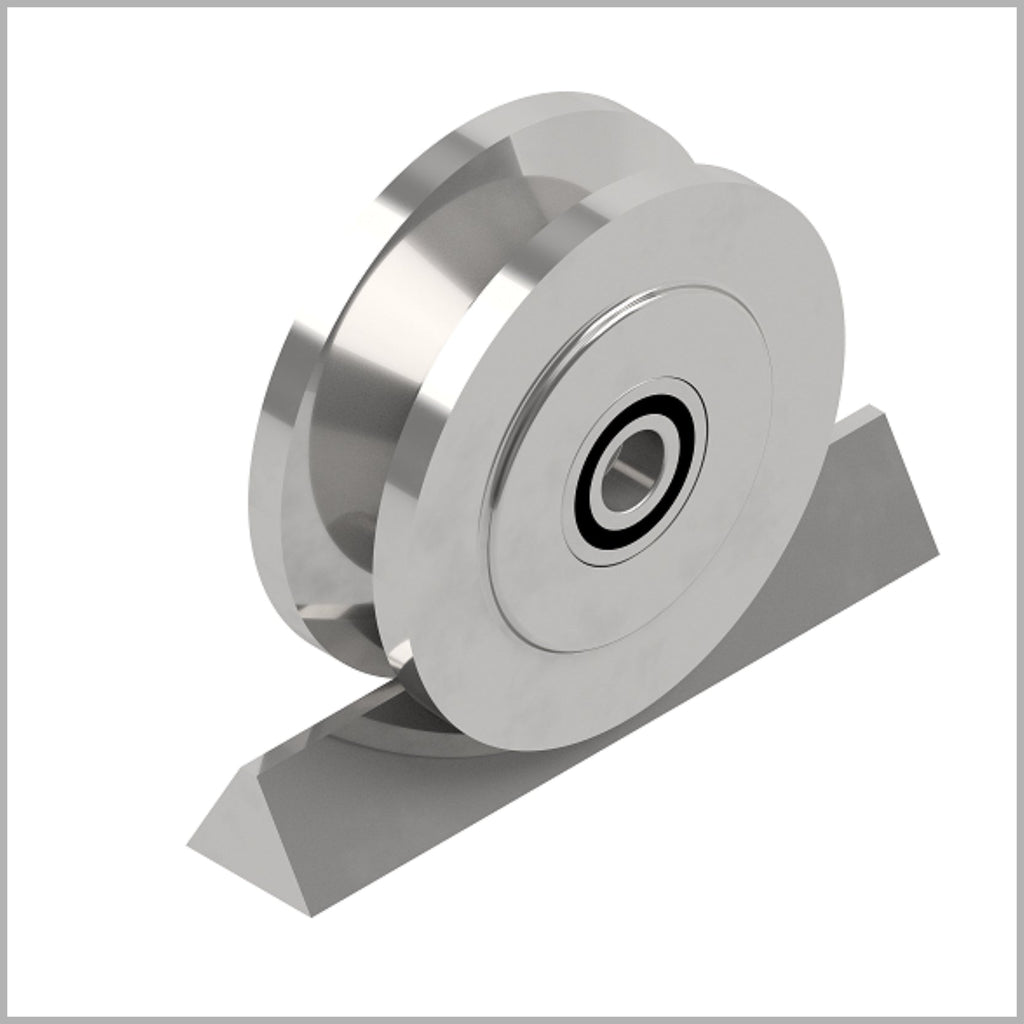

V-groove 90° / 16 mm guide roller for angle rails made of bright steel – Ø 75 mm, ball bearing

V-groove 90° / 16 mm guide roller for angle rails made of bare steel – Ø 75 mm, ball bearing – DSPV-9620K/075/22/16
58,93 €
incl. VAT
46,96 €
excl. VAT
Made to order
approx. 7–12 days
The item will be produced after receipt of your order.
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
75 mm
Wheel width (B)
22 mm
Load capacity
250 kg
Groove width (E)
16mm
Bore (d1)
12 mm
Hub length (C)
22 mm
Conductivity
Conductive
Groove depth
8 mm
Temperature
-20 °C to +100 °C
Tread hardness
200-230 HB
Material
Metal

V-groove 90° / 16 mm guide roller for steel angle rails, plain steel – Ø 75 mm, ball bearing

This V-groove 90° / 16 mm guide roller for steel angle rails, plain steel – Ø 75 mm, ball bearing is designed for use on suitable angle rails, angle profiles and industrial rail guides. The 90° V-groove supports precise guidance of the roller on suitable angle profiles.

The roller is suitable as a guide roller, running roller or rail guide roller for technical applications in mechanical engineering, conveyor technology, plant engineering and gate and guidance systems. The combination of defined V-groove geometry, robust material and ball bearing makes it suitable for reliable running in commercial use.

Technical features

  • Groove shape: 90° V-groove with 16 mm groove/recess dimension
  • Wheel diameter: Ø 75 mm
  • Material: steel
  • Bearing: ball bearing
  • Use: suitable angle rails, angle profiles and rail guides

Benefits in use

  • robust steel design for high mechanical stress
  • precise guidance geometry for suitable angle rails
  • suitable for industrial guiding and running tasks
  • durable construction for mechanical engineering and conveyor technology

Typical applications

  • Angle rails and angle profiles
  • Rail guides and roller guides
  • Mechanical engineering and special plant engineering
  • Conveyor technology and internal transport systems
  • Gate guides, flap guides and technical guidance systems

Note: Actual suitability depends on rail dimensions, angle profile, load, installation situation and environmental conditions. For technical applications, the roller should be selected to match the existing rail and the load.

Volume discount: If you require larger quantities, an individual quotation can be requested from 10 units.
