Technical datasheet

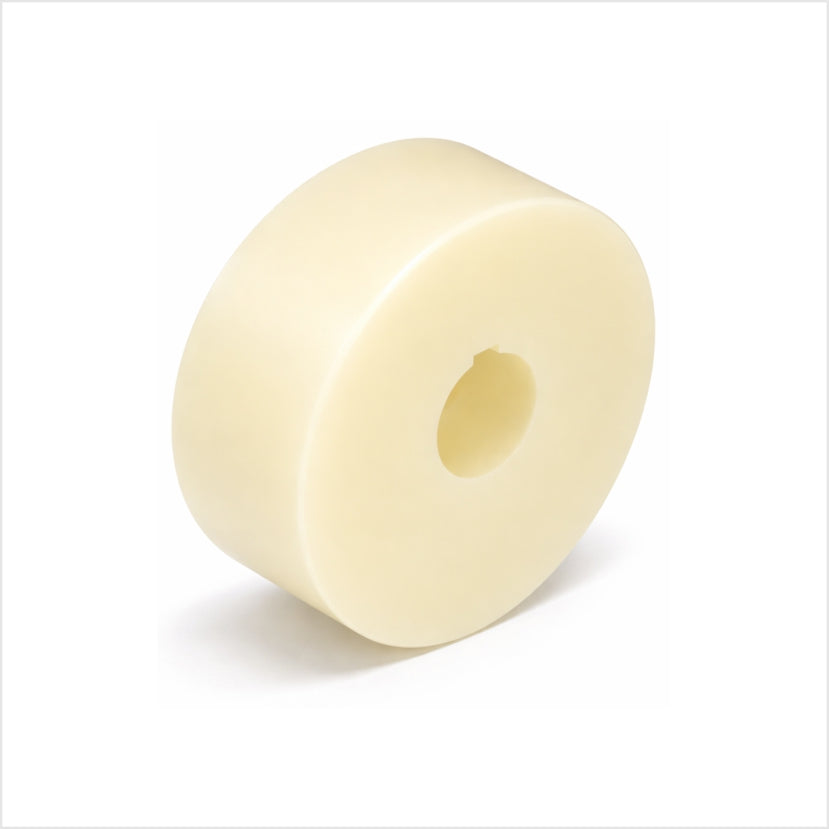

Drive Wheel 80 mm / 40 mm | Cast Polyamide 6 | Keyway | Low Dead Weight | Highly Loadable
Item number: 2505PN/080/40/40/20
castors-direct.com
Description
80 mm / 40 mm Polyamide 6G drive wheel Robust polyamide 6G drive wheel for industrial applications. high-strength engineering plastic very good sliding properties high mechanical load capacity low rolling resistance ideal for conveyor technology and mechanical engineering
Technical data
| Wheel diameter (D) | 80 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Load capacity | 350 kg |
| Axle hole (d1) | 20 mm |
| Hub length (C) | 40 mm |
| Nabennutbreite (N1) | 2.8 mm |
| Nabennuthöhe (N2) | 6 mm |
| Passung Nabennut | JS9 |
| Temperatur | -20 °C bis +100 °C |
| Gewicht | 300 g |
| Material | Polyamid 6G |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Product Safety – Drive Wheels Intended Use This drive wheel is intended for use in industrial machinery, conveyor systems, automated guided vehicles (AGV), industrial trucks, or similar technical systems. The product may only be used in accordance with its technical specifications. Assembly Assembly may only be ...
