Technical datasheet
80 mm Heavy-duty turntable, 3 PU twin wheel swivel castors, crowned - DRT-MG/690KBA/080/30
Item number: DRT-MG/690KBA/080/30
Description

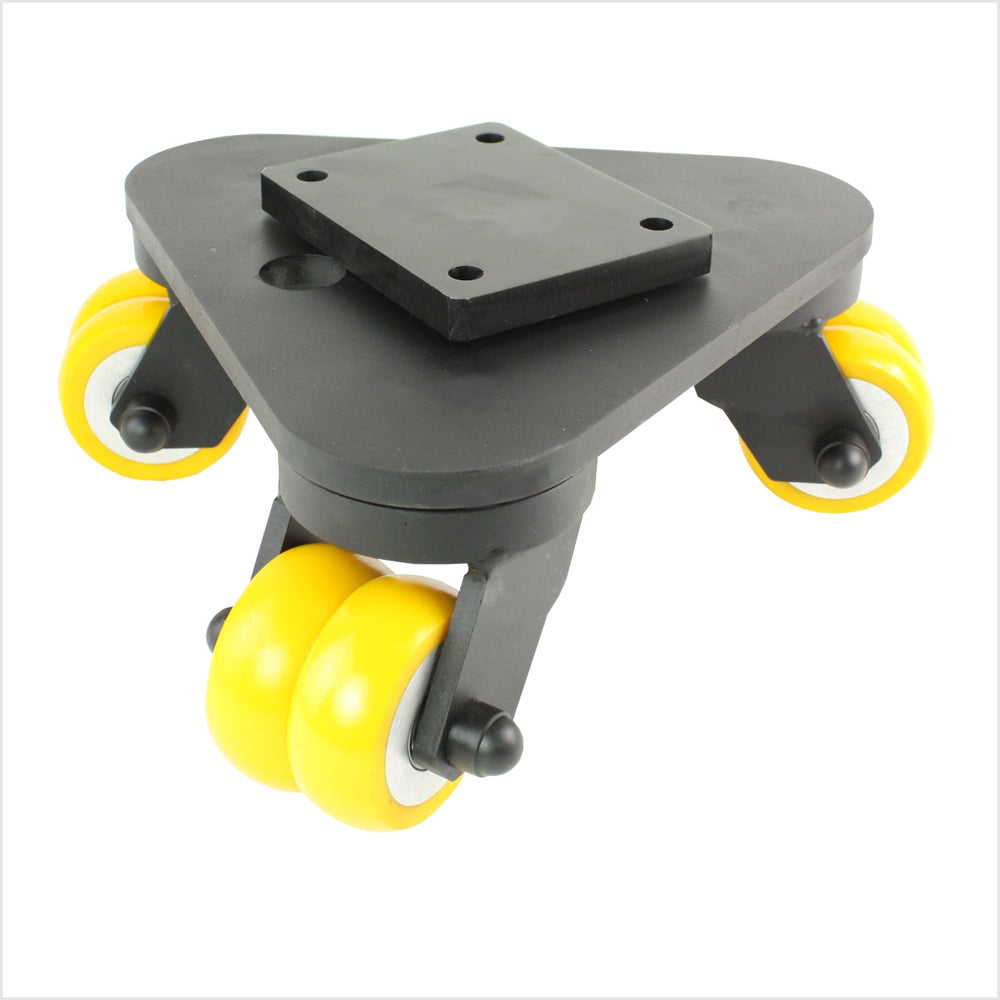

The 80-mm-Schwerlast-Drehteller is a heavy, welded steel turntable bearing for high loads and an in-house development by castors-direct.com. The special feature: the swivel bearings of the castor housings are inserted directly into the triangular plate – this gives the turntable bearing an extremely low overall height, which is hardly available elsewhere.
Technical data
| Wheel diameter (D) | 80 mm |
|---|---|
| Wheel width (B) | 60 mm |
| Turning radius | 182 |
| Load capacity | 1300 kg |
| Overall height | 145 mm |
| Bolt hole spacing | 105 x 80 |
| Plate size | 140 x 110 |
| Hole Ø | 11 mm |
| Fastening | Plate |
| Material | Polyurethane MDI PU |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Safety instructions – turntable swivel castors for stage, scenery and grandstand technology Intended use These castors are intended exclusively for the transport and positioning of stage structures, scenery and grandstand elements. Use under person load is not permitted – grandstands, platforms and stage elements m...
