Technical datasheet

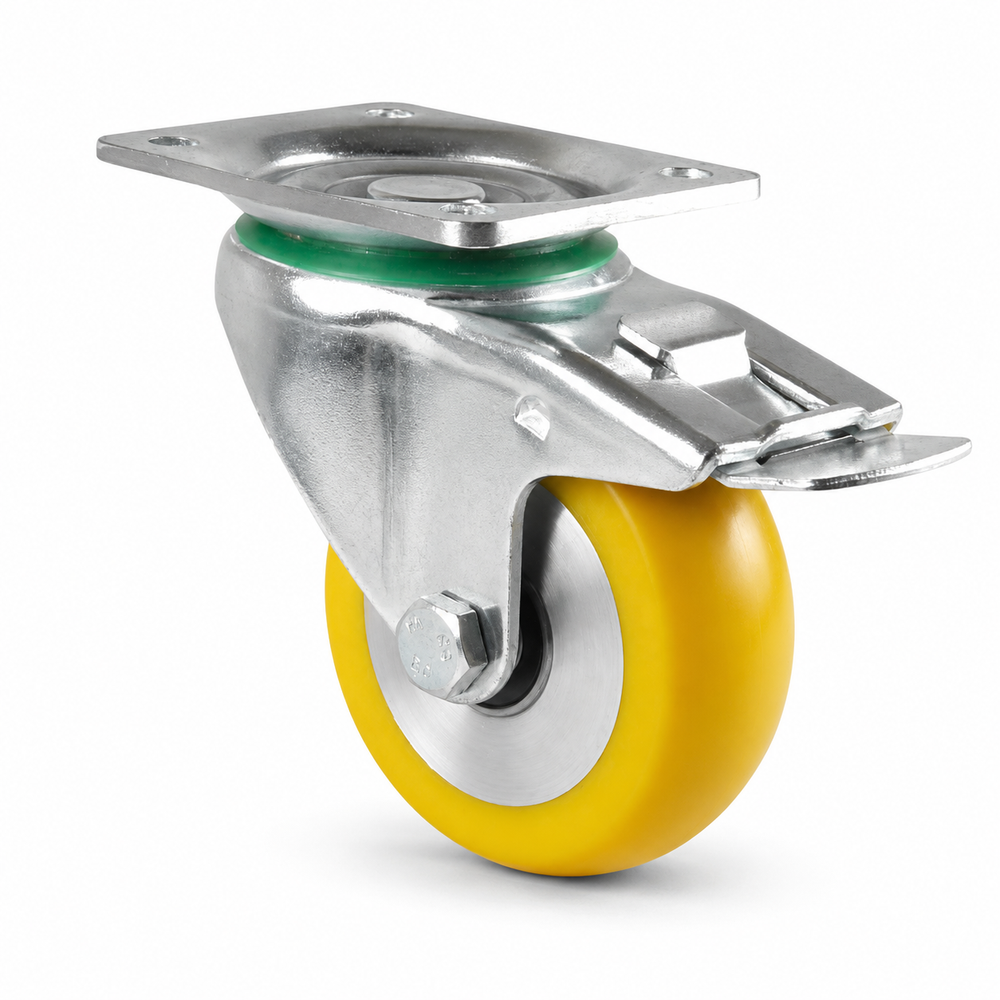

80 mm Swivel castor with brake, polyurethane wheel, crowned & flat - LTB-TS/690KBA/080/30
Item number: LTB-TS/690KBA/080/30
Variant: crowned
castors-direct.com
Description
The 80 mm swivel castor with brake offers maneuverability when moving and a secure stand when stationary. The convex PU wheel runs quietly and is gentle on floors.
Technical data
| Wheel diameter (D) | 80 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Load capacity | 230 kg |
| Overall height | 100 mm |
| Ausladung | 40mm |
| Schraubloch-Ø | 9 mm |
| Lochbild | 80 x 60 mm |
| Plattenmaß | 105 x 80 |
| Fastening | Plate |
| Gewicht | 1.2 kg |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
