Technical datasheet

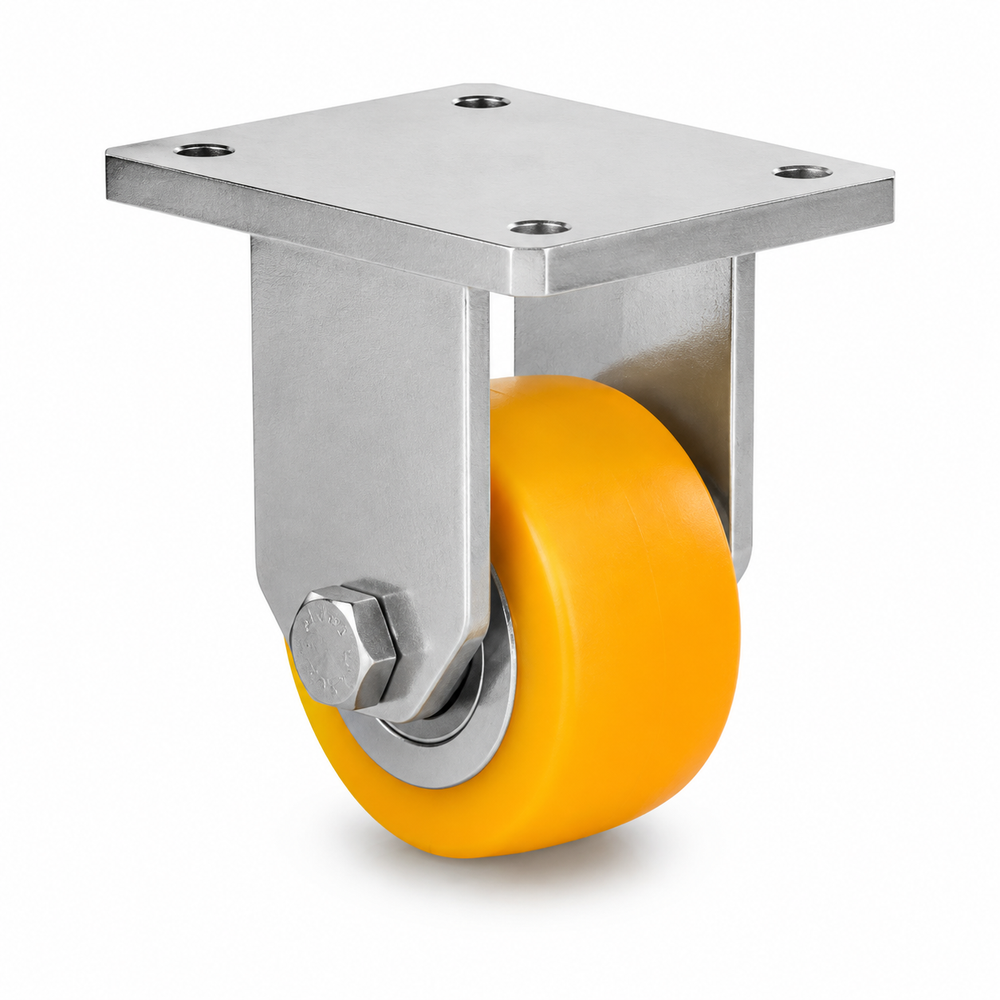

Heavy-duty fixed castor Ø 75 mm – polyurethane PU – 300 kg
Item number: B-M/690KBA/075/40
castors-direct.com
Description
The housing is made of welded steel, galvanised on the surface and therefore protected against corrosion. The wheel is made of polyurethane with a solid aluminium core and crowned tread and runs on ball bearings for smooth, long-lasting operation. Load capacity: 300 kg.
Technical data
| Wheel diameter (D) | 75 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Overall height | 100 mm |
| Load capacity | 300 kg |
| Hole Ø | 9 mm |
| Bolt hole spacing | 80 x 60 mm |
| Plate size | 100 x 80 mm |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt
Safety information
Do not exceed the maximum load capacity per castor. Values apply to level, hard floor surfaces. Allow for load capacity losses due to wear.
