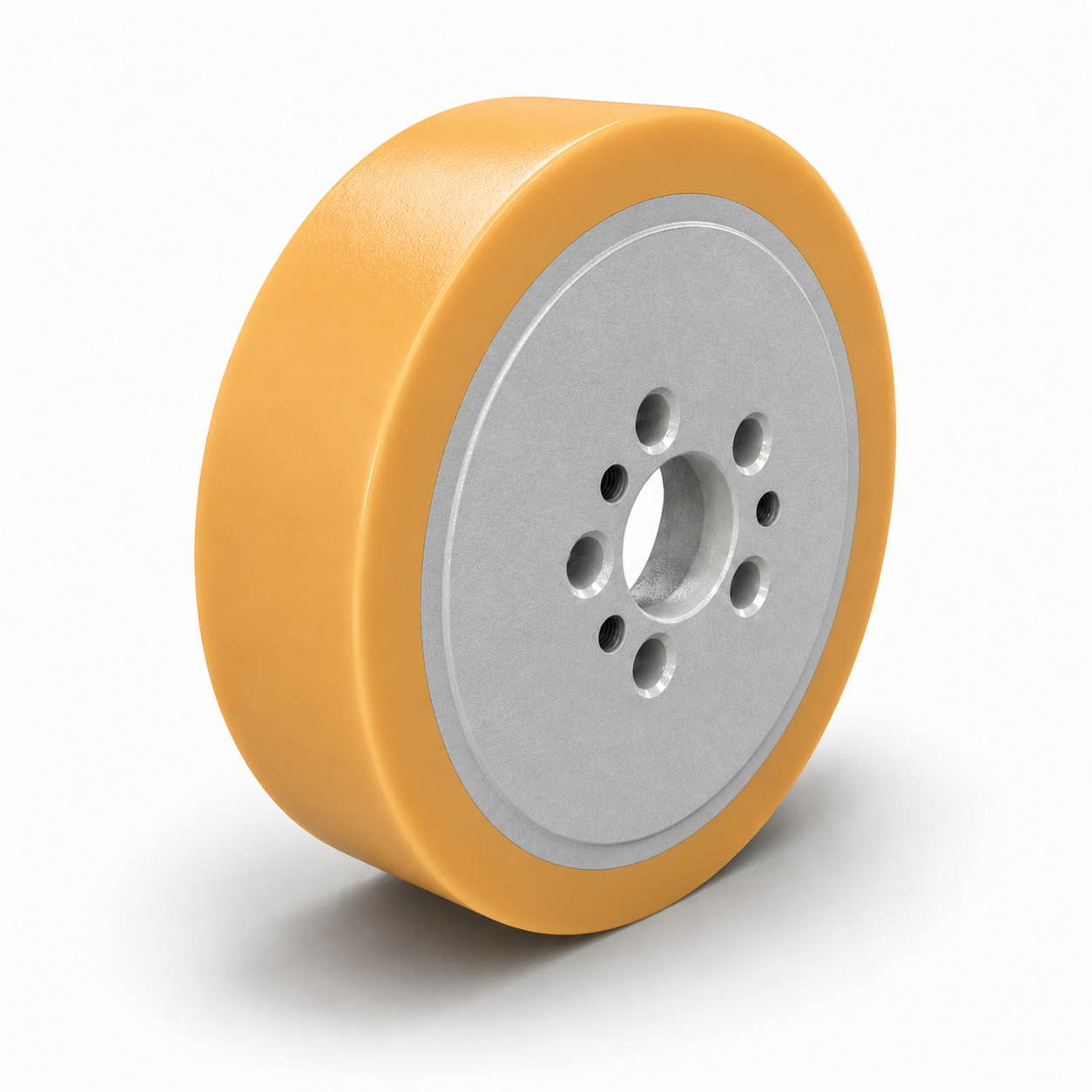

Drive wheel 230x82/45 mm, Vulkollan, bolt circle 5x14 mm - 3 x M10

Drive wheel 230x82/45 mm, Vulkollan, bolt circle 5x14 mm - 3 x M10
  • Drive wheel 230x82/45 mm, Vulkollan, bolt circle 5x14 mm - 3 x M10
174,66 €
IVA incluído
142,00 €
sem IVA
Production manufacturing
approx. 7–12 days
The product is manufactured after the order has been placed.
Customers rate us 4.9/5 based on 10 reviews.
Request a quote

Technische Daten

Wheel diameter (D)
230mm
Wheel width (B)
82.0mm
Load capacity
1350kg
Axle hole (d1)
45.0mm
Schraubloch-Ø
14mm
Lochbild
5x70mm
Kontaktverfärbungsfrei
Ja
Spurlos
Ja
Härte der Lauffläche
92° Shore A.

Drive Wheel 230x82 mm made of Vulkollan

Technical Data

  • Diameter: 230 mm
  • Wheel Width: 82 mm
  • Bore / Hub: 45 mm
  • Material: Vulkollan
  • Bolt Pattern: 5×14 mm +3 x M10
  • Pitch Circle Diameter: 70 mm
  • Bolt Hole Diameter: 14 mm
  • Application: Pallet Trucks / Forklifts
  • Item Number: AR-230-82-45-VUL

Matching OEM and Comparison Numbers

  • Jungheinrich: 50030952, 50460100, 63212830, 63215600
  • Linde: 5035612
  • Still: 63215600
  • Steinbock: 5035612
  • Others: 63215600

Note: Please check the dimensions, bore, bolt pattern, and OEM/comparison numbers on your existing wheel before ordering.

All mentioned brand and manufacturer names are for identification of compatibility only. This is not an original part from the respective manufacturers.
