Grooved Profile Wheel | Ø80×30 mm | Polyamide | 30 mm Profile | 10 mm Profile Groove | 120 kg

Grooved profile wheel Ø80×30 mm – Polyamide 6G for 30 mm aluminum profile

Compatibility: Suitable for 30 mm aluminum profile systems, including profiles from item®, Fath®, and Bosch Rexroth® (groove width 6 / 8 / 10 / 12 mm depending on variant).

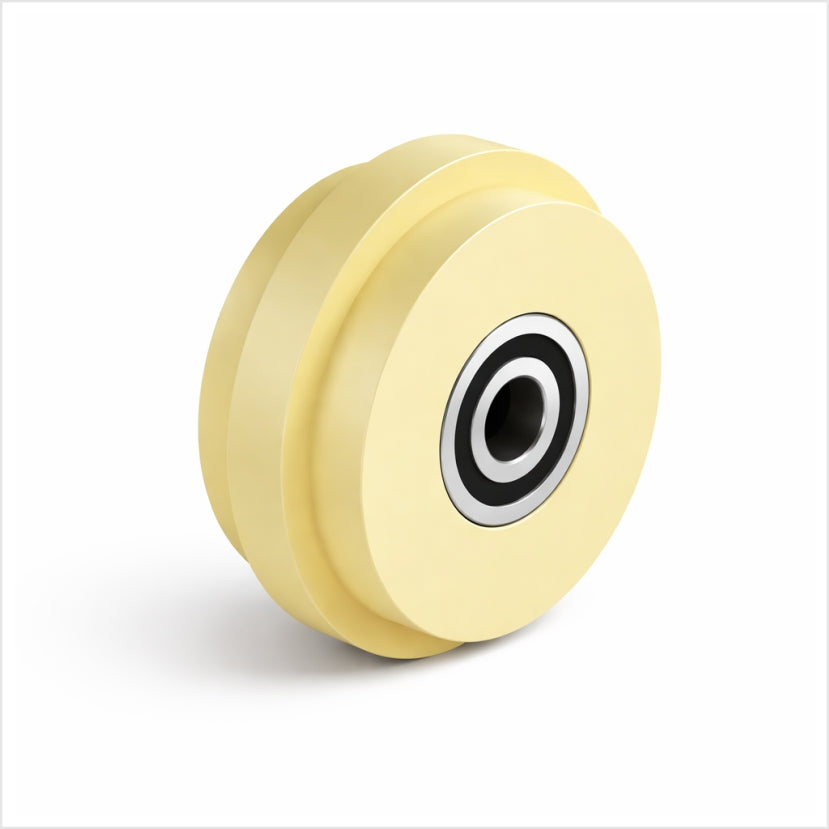

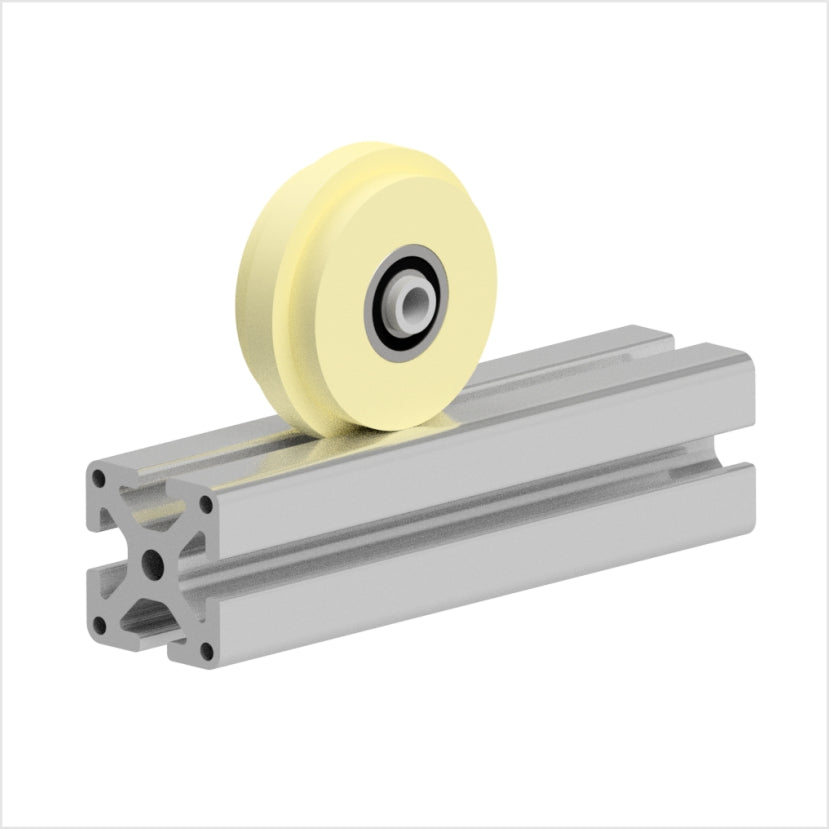

The grooved profile wheel Ø80×30 mm made of Polyamide 6G is specially designed for precise guiding in 30 mm aluminum profiles – for shelves, material trolleys, workbenches or linear axes that need to move smoothly and with low play. The groove geometry engages positively with the aluminum profile and enables silent linear movement without additional guiding elements. More application examples can be found on our solution page for conveyor technology and mechanical engineering.

Bearing designs

The grooved profile wheel is available in three variants:

• With ball bearing: Double-sealed deep groove ball bearing made of steel – low maintenance, mountable directly on axle or bolt, for rotating wheels.
• With stainless steel ball bearing: Same as ball bearing version, but with stainless steel ball bearing for wet or corrosive environments.
• With hub keyway: Torsion-proof shaft connection according to DIN 6885 – for driven wheels or when the wheel needs to be firmly connected to the shaft.

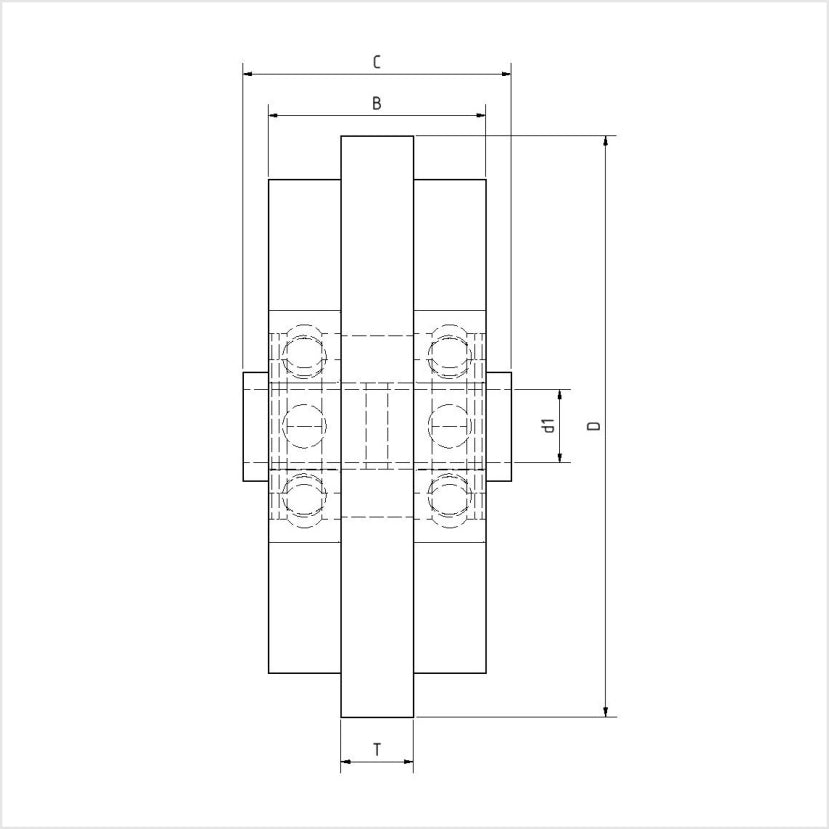

Technical features

• Outside diameter: 80 mm
• Wheel width: 30 mm
• Hub length: 30 mm
• Bore: Ø10 mm
• Running width: 9.8 mm
• Groove width: 10 mm
• Load capacity: 120 kg
• Suitable for: 30 mm aluminum profile (item®, Fath®, Bosch Rexroth® etc.)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-safe

Areas of application

• Shelves and storage systems with linear guiding
• Material trolleys and mobile workbenches
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveyor technology

Notes

Please check profile groove dimensions and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions on request.

Brand information / Compatibility notice

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The grooved profile wheels offered on this page are not original products from these manufacturers, but compatible accessories. The mention of brand names serves exclusively to describe compatibility.
